Spec Sheet Assembly Guide

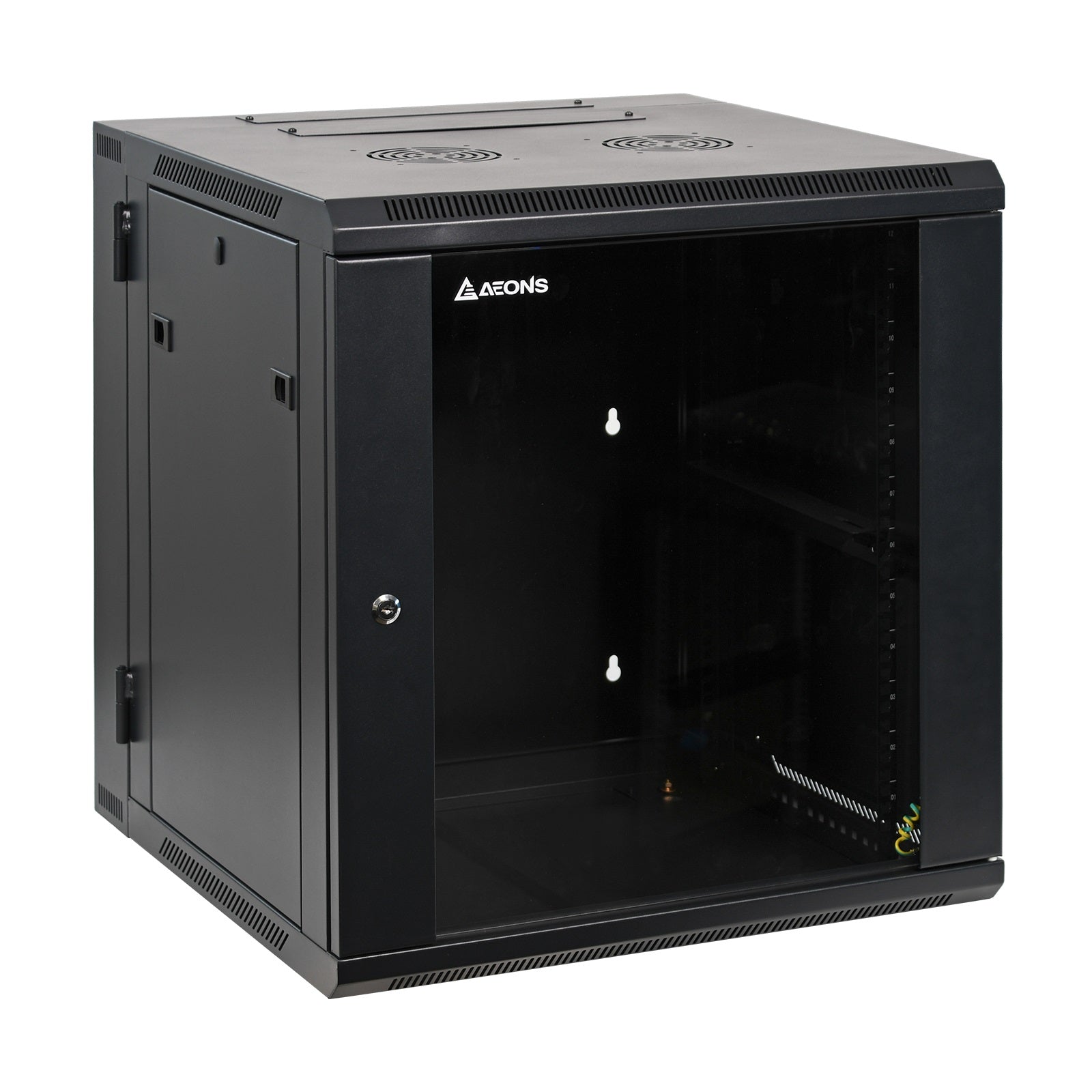

Pro-Series Wall Mount Cabinets organize and secure EIA-standard 19-inch rackmount equipment in network closets, offices,

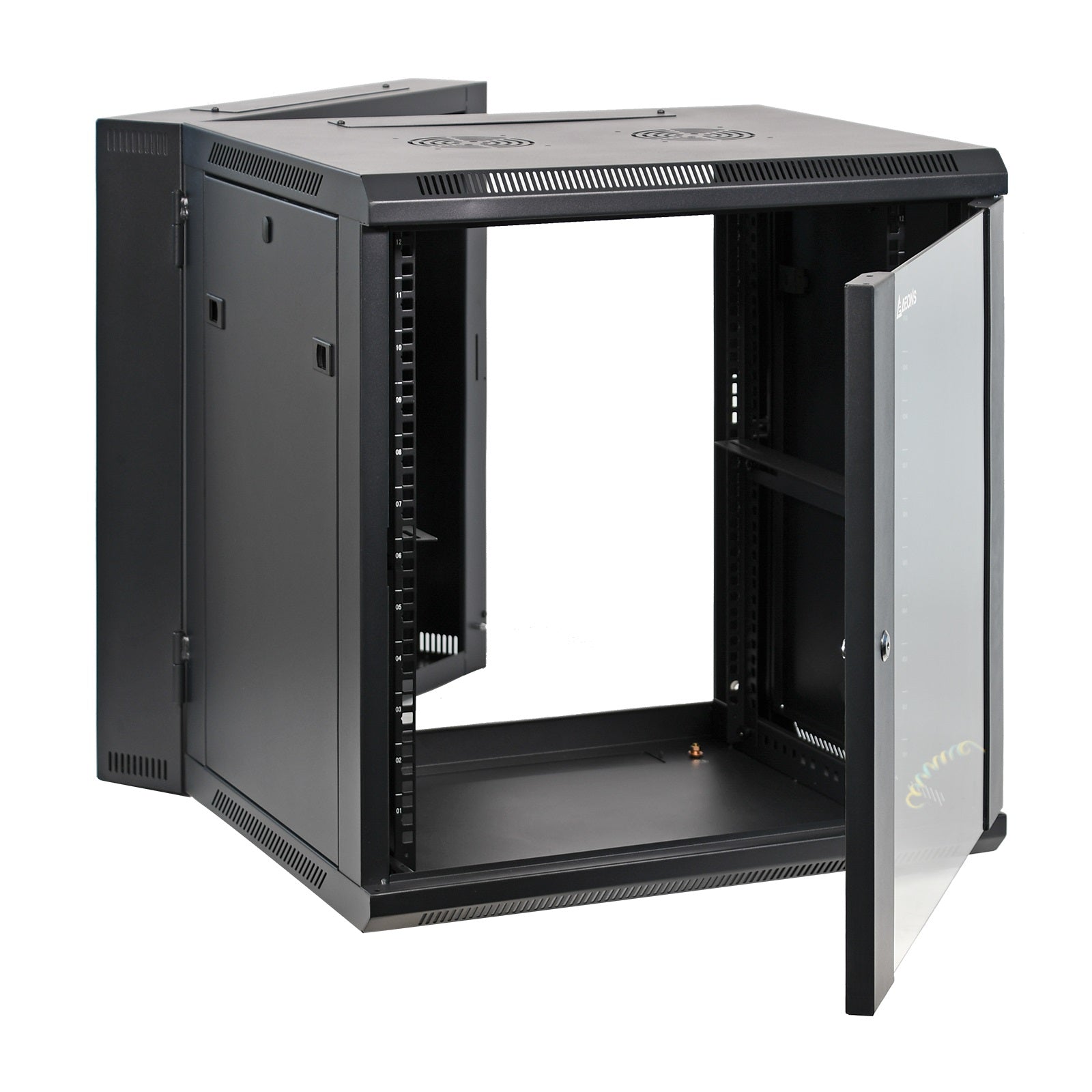

classrooms, and other locaons with limited floor space. Flat-packed for easy installaon and quick deployment. Removable and
reversible front door and removable side panel design, each with quick-release mechanism, allow easy access to equipment during
installation and maintenance. The vented frames and optional cooling fans provide excellent air ventilation.
Features:
Fits rack equipment up to 21.7 inch deep.
Maximum load capacity of 132 lbs.

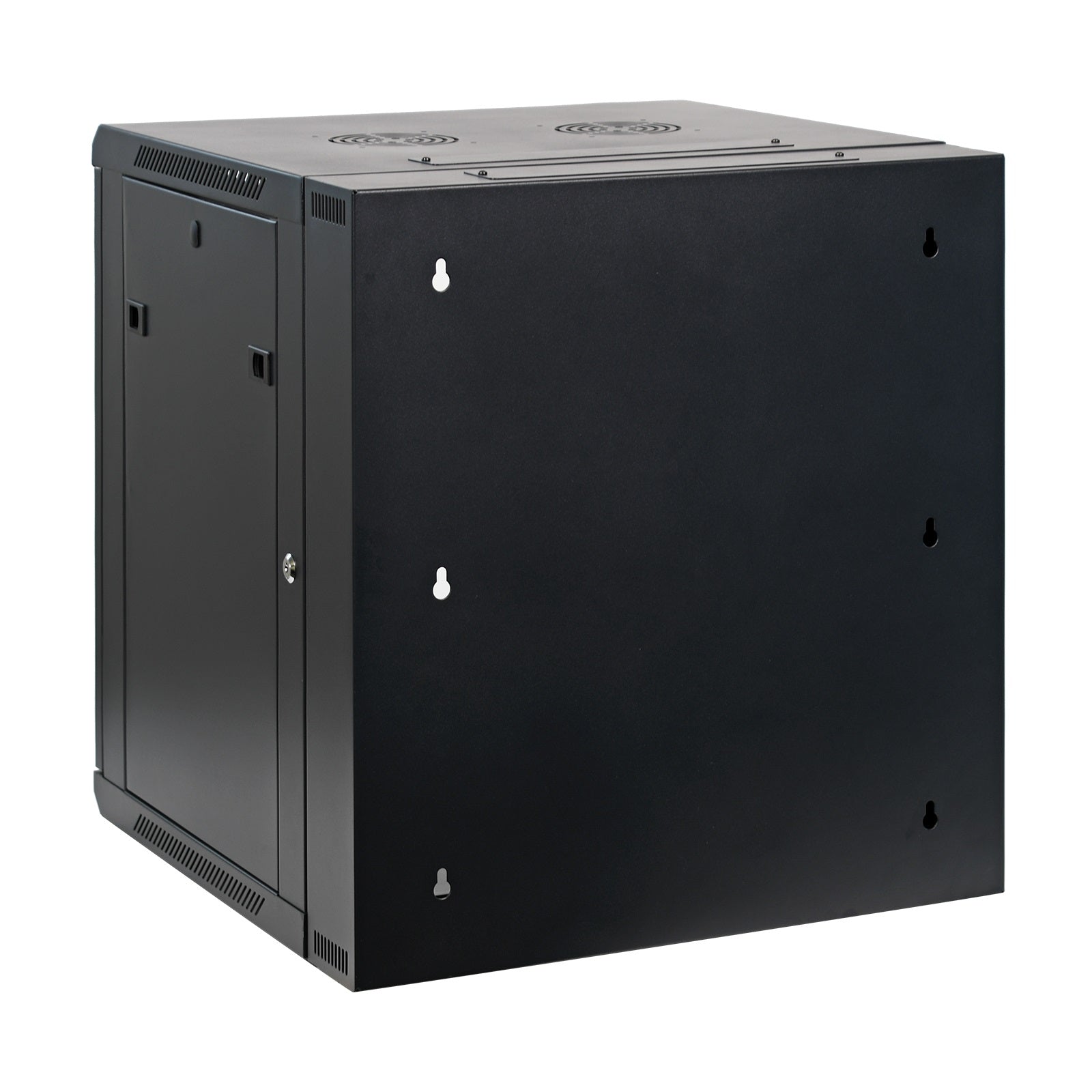

Swing away from wall on hinge for easy access to the rear of equipment.
Reinforced lockable door and main chassis for increased security.
Removable door and side panel.
Cable pass-through on top and bottom.
Rugged welded structure with ventilation at front, sides, top and bottom.
Specs:
| Type: |
Enclosure |
| Style: |
Wall-Mount |
| Rack Height: |
12U |
| Rack Depth (in. / mm): |
23.6 / 600 |
| Maximum Device Depth (in. / mm): |
21.7 / 550 |
| Front Door Type: |
Tempered Glass |
| Load capacity (lbs / kg): |
132 / 60 |
| Number of vertical mounting rails: |
4 |
| Number of L brackets: |
2 |
| Shelves: |
No |
| Cable access: |
Top, Bottom |
| Unit Dimensions (H x W x D / in.): |
23.5 x 23.5 x 25 |
Due to the dimensions of the box, Dimensional Weight Rates will apply for this item. What is Dimensional Weight?
** Free freight does NOT apply to this item. **
