105019

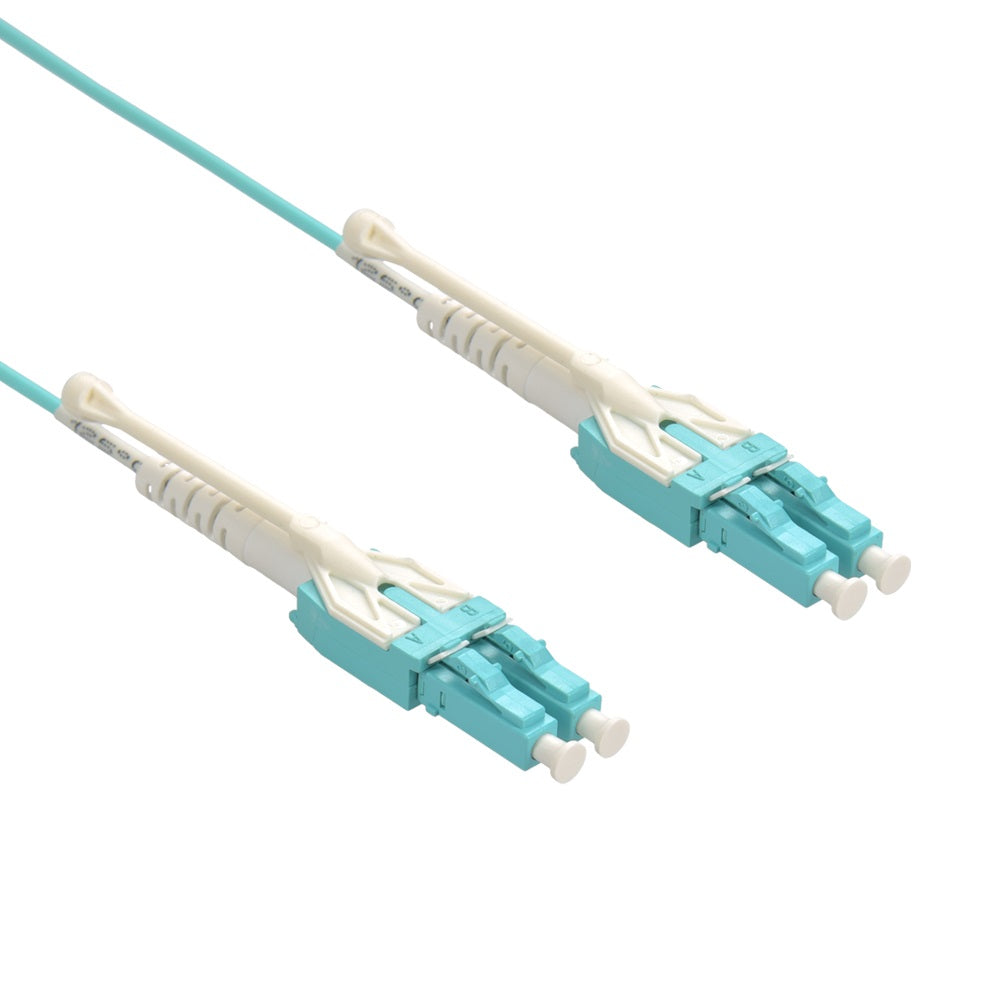

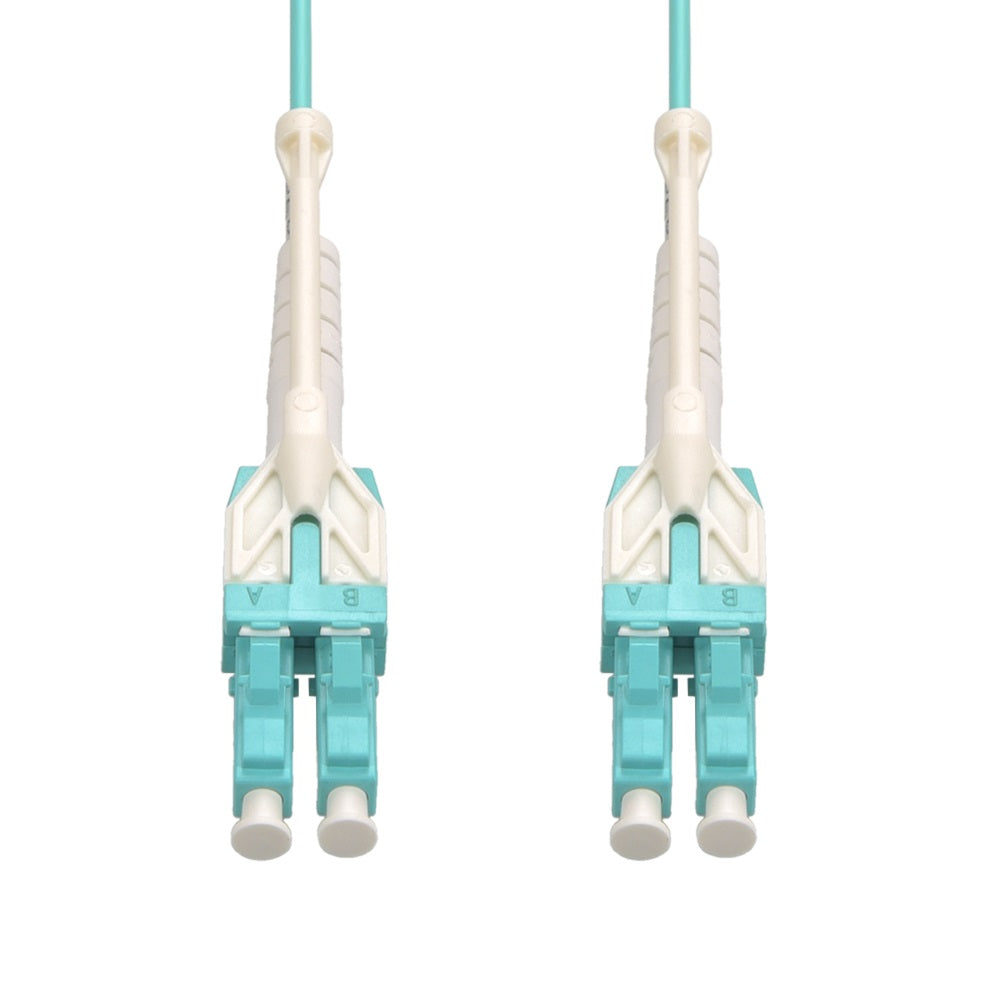

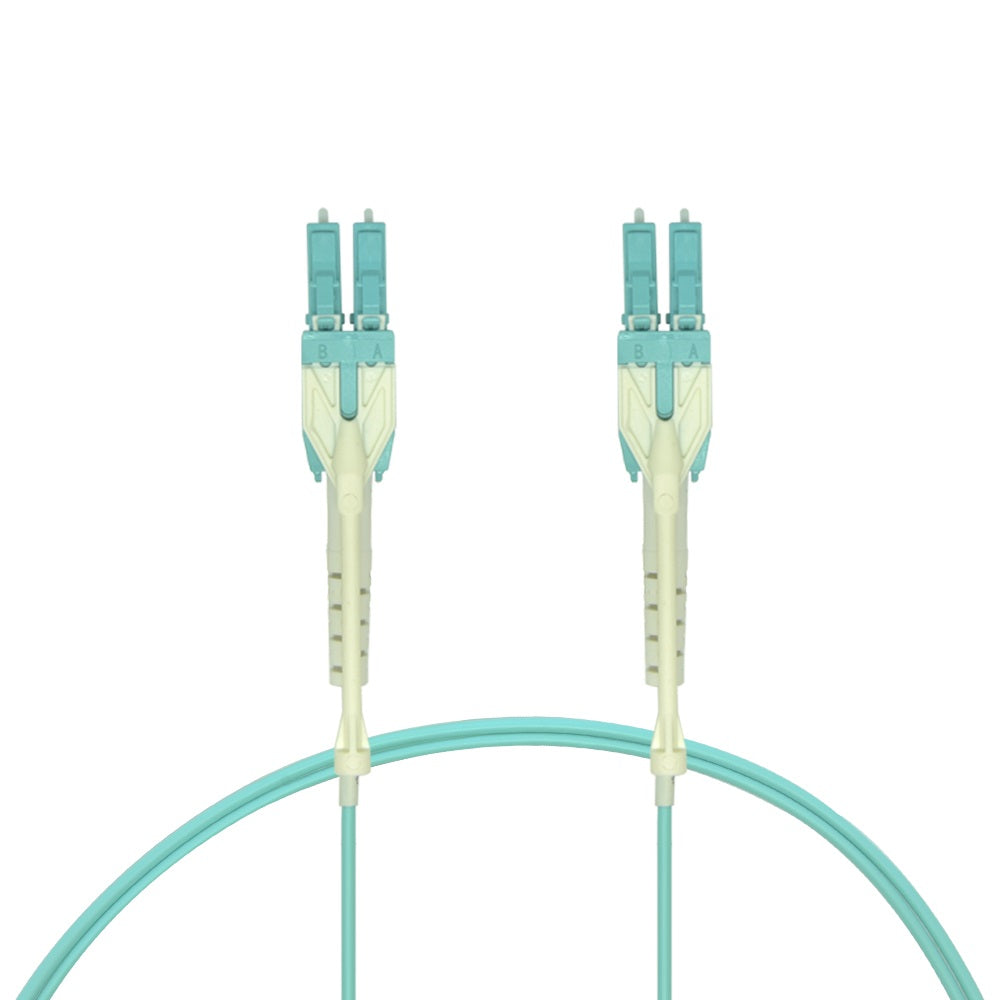

15m Uniboot LC/UPC-LC/UPC OM3 Multimode Duplex Aqua Fiber Optic Patch Cable with Pull Push
Out of stock
ETA: Call for availability
- 30-day money back guarantee
- 15% restocking fee after 30 days.
- Safe SSL encrypted shopping
Regular price
$14.86
Sale price
$14.86
Regular price
Unit price
/
per
The LC-LC uniboot design allows one cable to carry both fibers, reducing cable congestion when routing, and is suitable to be used in high-density fiber patching in data centers which need space saving and reduce cable management troubles. Pull-Push connector facilitates smooth and easy removal on high density patch panel.
| Connector Type | LC-LC with Pull Push Tab | ||
| Polishing | UPC | ||
| Return Loss | 55 dB | ||
| Insertion Loss | 0.30 dB | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Cabled Optical Fiber | Uniboot OM3 | ||
| Nominal Diameter Core | 50/125 ’…m | ||
| Jacket Material | OFNR | ||
| Temperature Range | -20’C +70’C |
