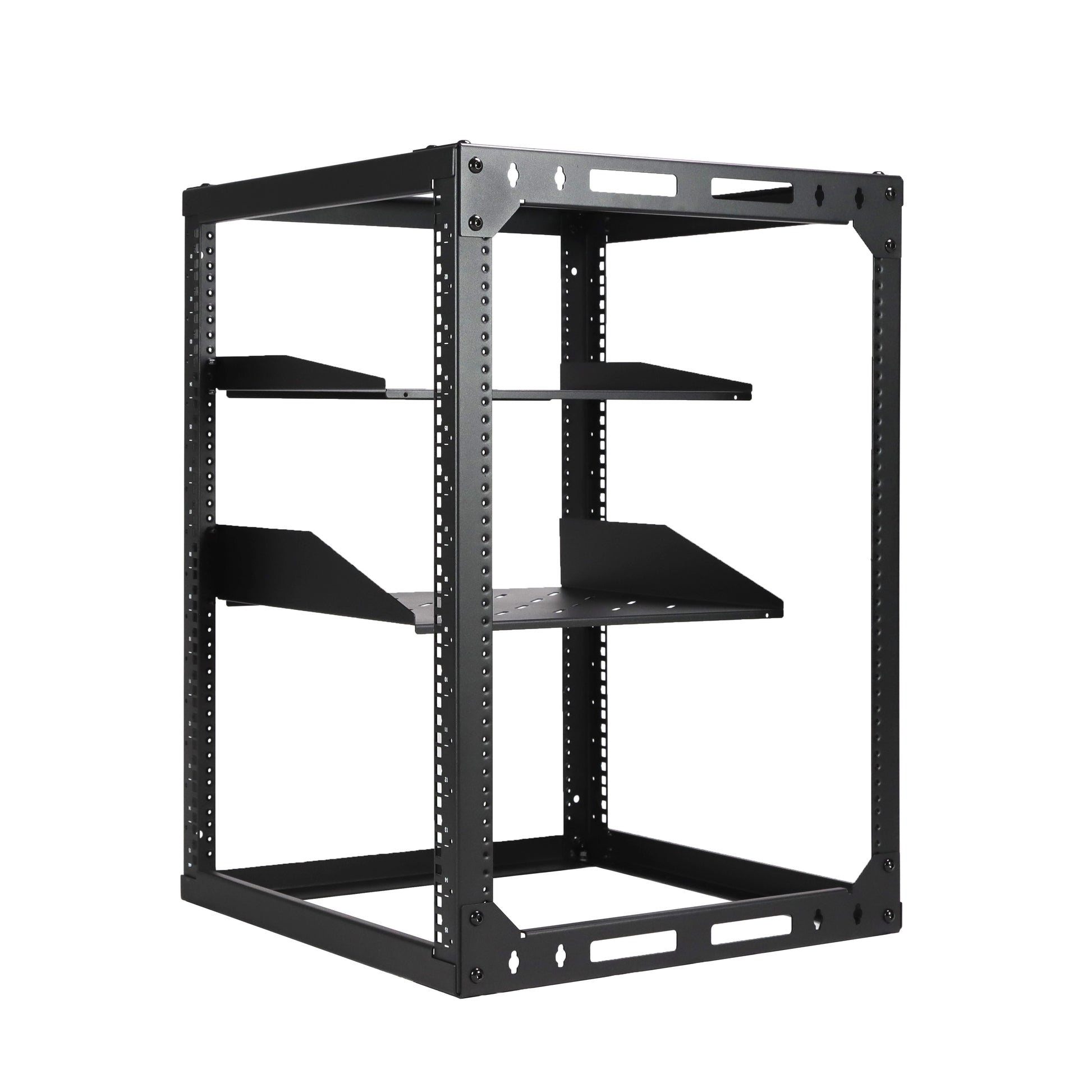

SRC Series Wall Mount Open Frame supports both front and side mount, enabling 19-inch servers, A/V or network equipment to be installed parallel or perpendicular to the wall, ideal for applications in closets, back offices, or anywhere where space is limited.
A side mount configuration allows for a greater mounting depth with the elimination of a wall barrier, also enables unobstructed maximum airflow from the front to the back-end of equipment that reduces hot spots, resulting in a more efficient operation and a longer lifespan. The open design also allows easy access to the front and rear of equipment, from any angle, for cable
management and servicing.
Universal and Optimal Design:

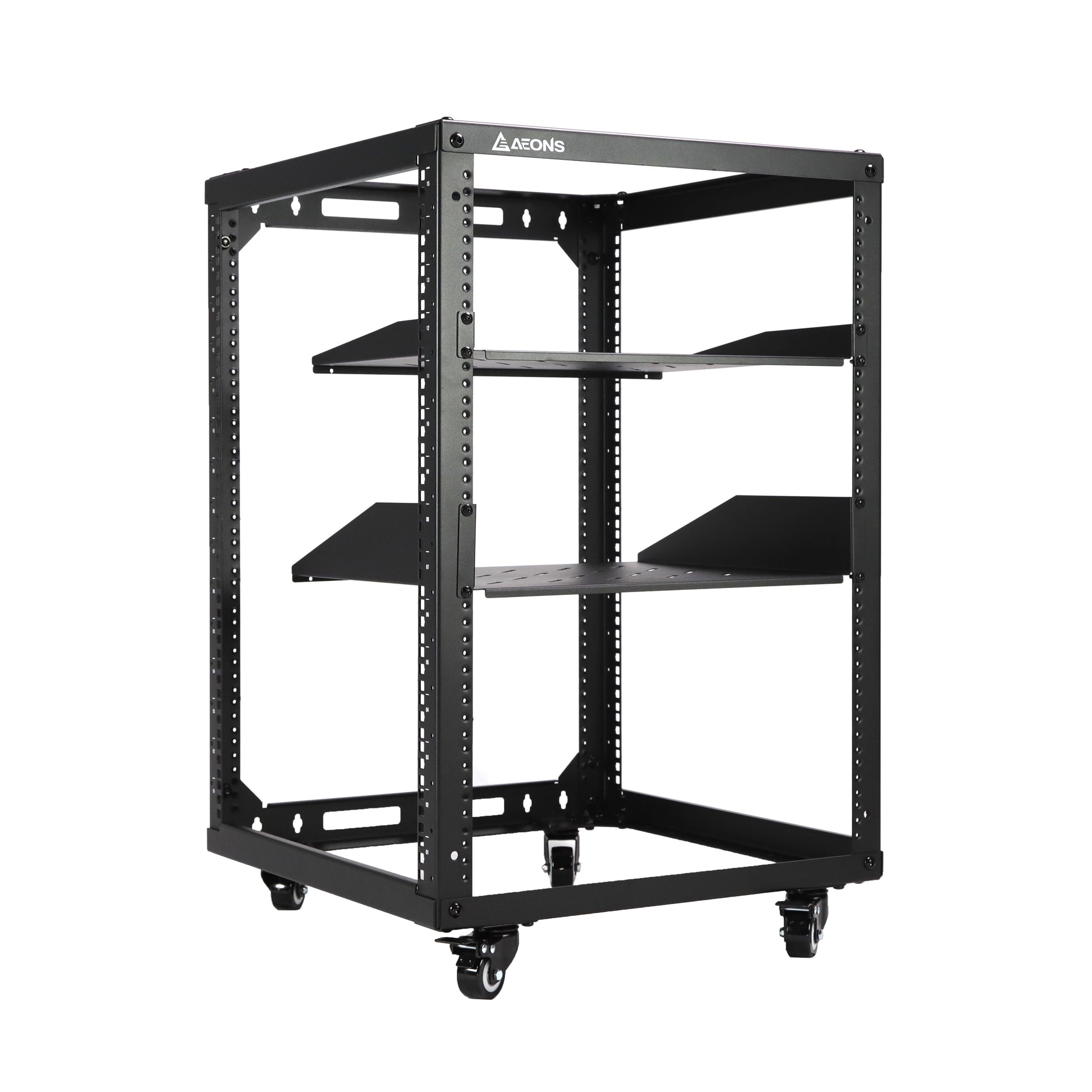

This unit supports both front and side mounting options, featuring #10-32 round mounting holes at the front and square mounting holes on the side. Wall-mounted or floor-standing with included casters. Pre-drilled Base frames support fastening to the ground and stacking.
Features:
Max load up to 790Lbs(360kg) floor standing, 200Lbs (90kg) wall mounted.
Heavy-duty SPCC cold-rolled steel, #12-24 threaded and Square Mounting Holes.
Open design and included vented shelves optimize air flow.
Flexible Cable Management with access from any side.
Ships flat-packed with hardware package. Easy assembly required.
Specs:
| Type: |
Open-Frames |
| Style: |
Wall-Mount |
| Rack Height: |
8U |
| Rack Depth (in. / mm): |
20.3/ 516 |
| Maximum Device Depth (in. / mm): |
N/A |
| Number of vertical mounting rails: |
4 |
| Number of L brackets: |
N/A |
| Unit Dimensions (H x W x D / in.): |
18 x 20x 18 |
