105542

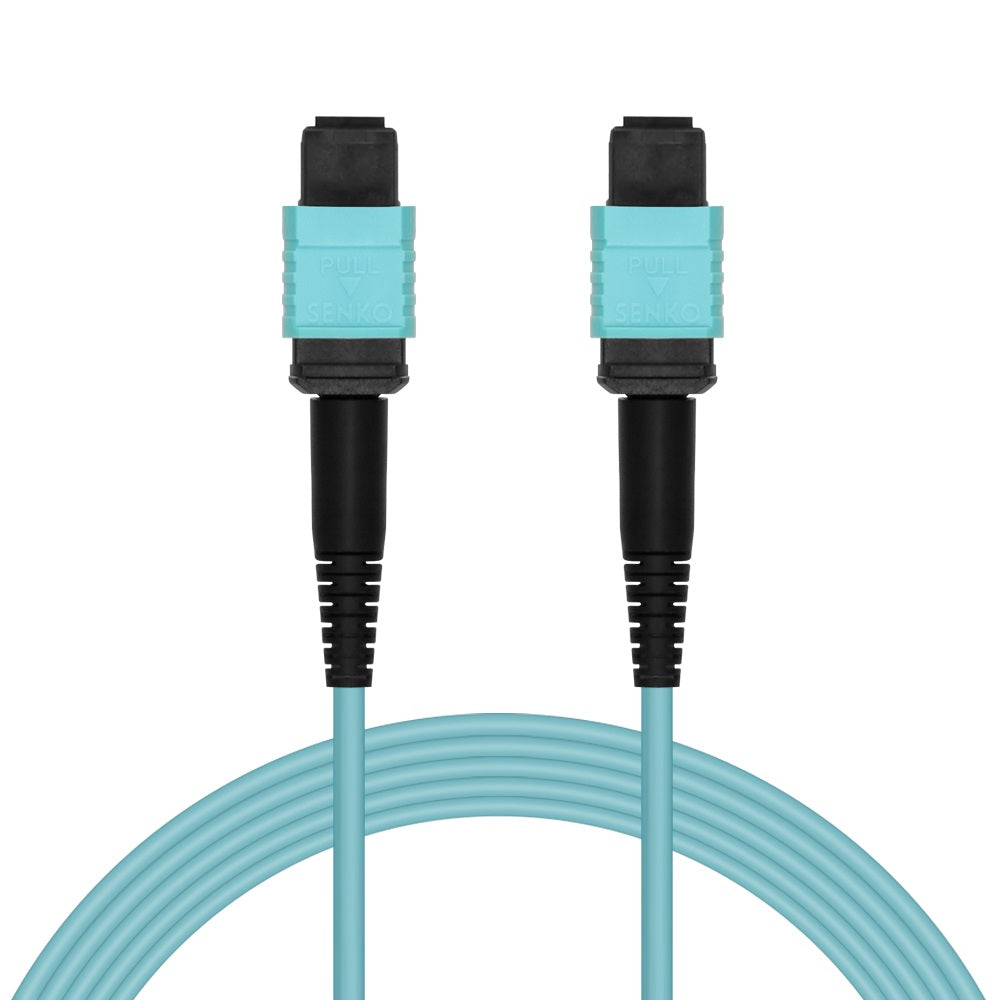

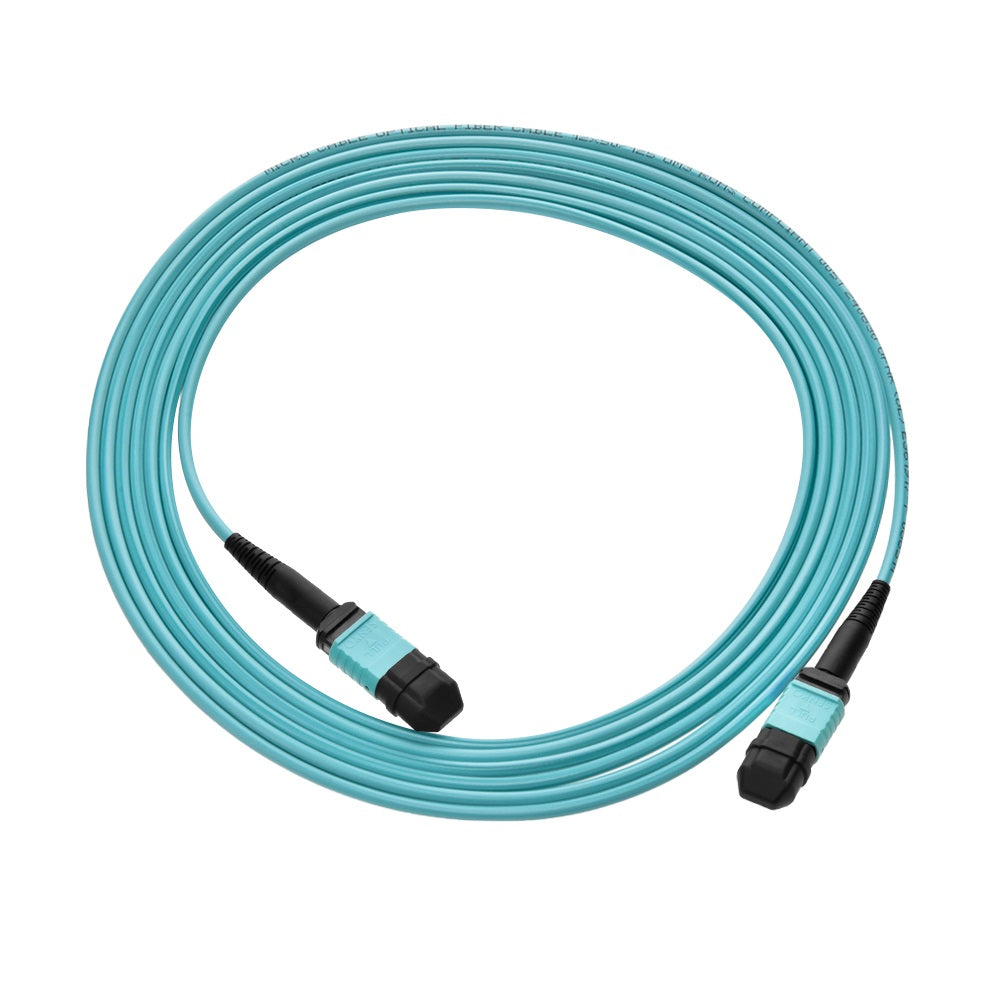

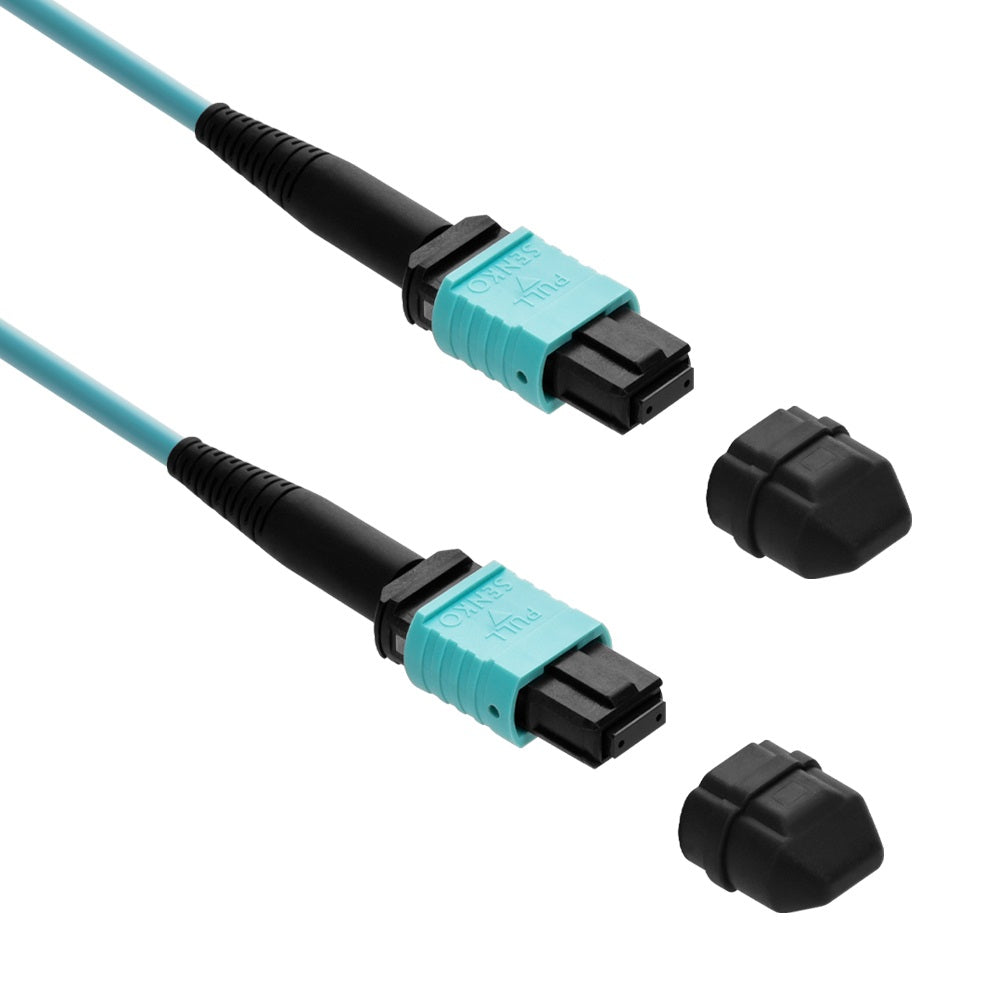

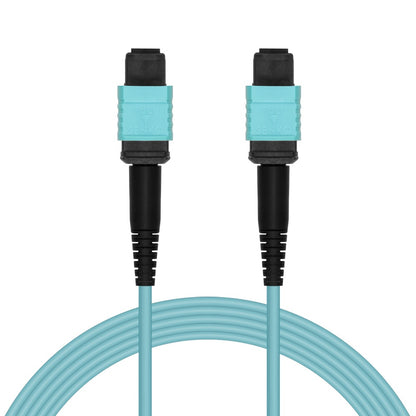

3m MPO OM3 Multimode 12-Fiber F to F Type B Aqua OFNR
Low stock
- 30-day money back guarantee
- 15% restocking fee after 30 days.
- Safe SSL encrypted shopping
Regular price
$35.76
Sale price
$35.76
Regular price
Unit price
per
Spec Drawing Packaging
MPO trunk cable is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With MPO connectors, it is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.
| Connector Type | MPO Female to Female B Type | ||
| Polishing | UPC | ||
| Return Loss | 20 dB | ||
| Insertion Loss | 0.35dB (0.15dB Typ.) | ||
| Jacket OD | 3mm | ||
| Fiber Mode | OM3 50/125m | ||
| 40/100G Ethernet Distance | 150m at 850nm | ||
|
10/100G Ethernet Distance |
400m at 850nm |
||
| Jacket Material | OFNR | ||
| Temperature Range | -20’C +70’C |
