Spec Sheet

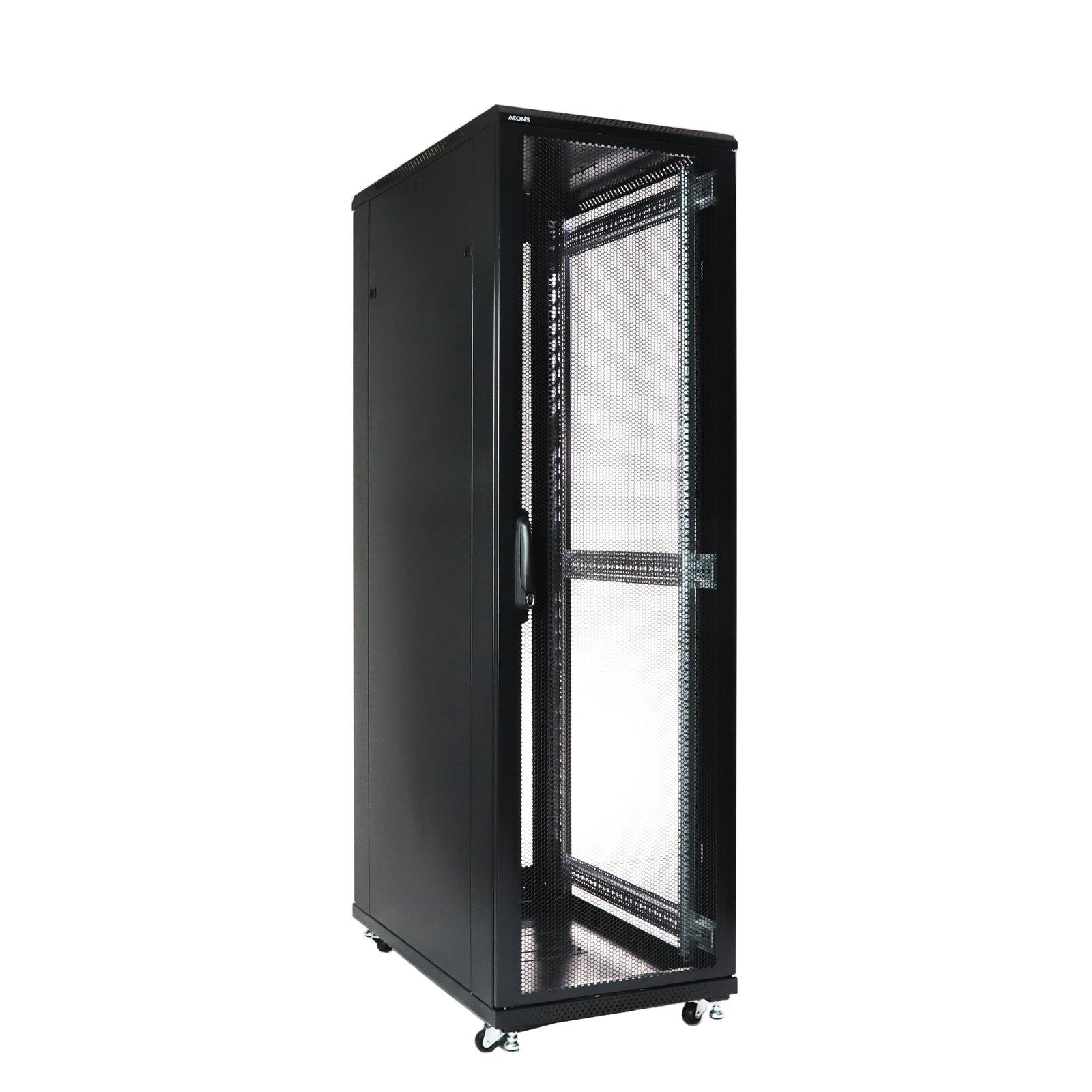

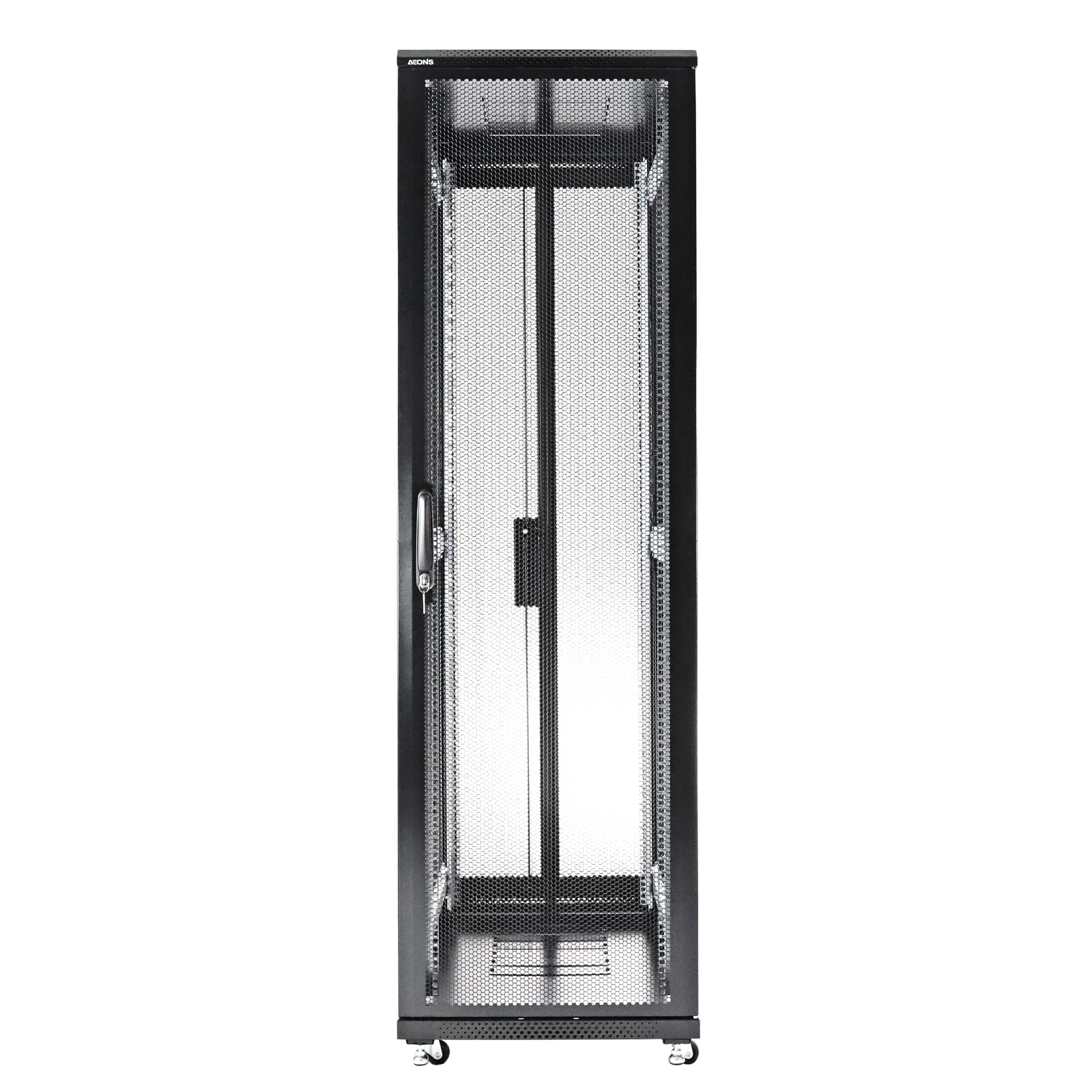

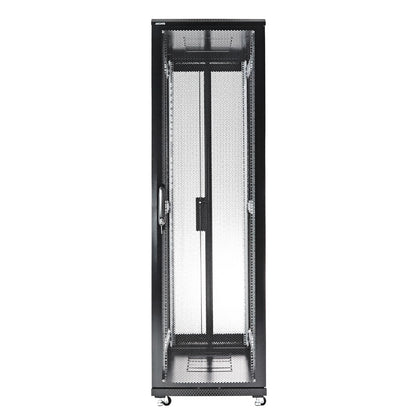

G-Series cabinet platform is designed with the installers perspective in mind, offering a variety of features that make tasks more
efficient and streamlined. These features include removable and replaceable cable entry plates, leveling feet, accessories channel,
and a range of options such as a variety of door and panel styles, cable management capacities. These features, combined with its
attractive design and high quality, make the G-Line cabinet an excellent choice for anyone looking for a cost-effective solution to
house data and communication equipment. .
Features:
Standard 24" (600mm) width and 39.5" (1000mm) depth.
’‡ 2,200 lb stationary load rating
Heavy gauge rails, galvanized with automatic potential equalization built in.

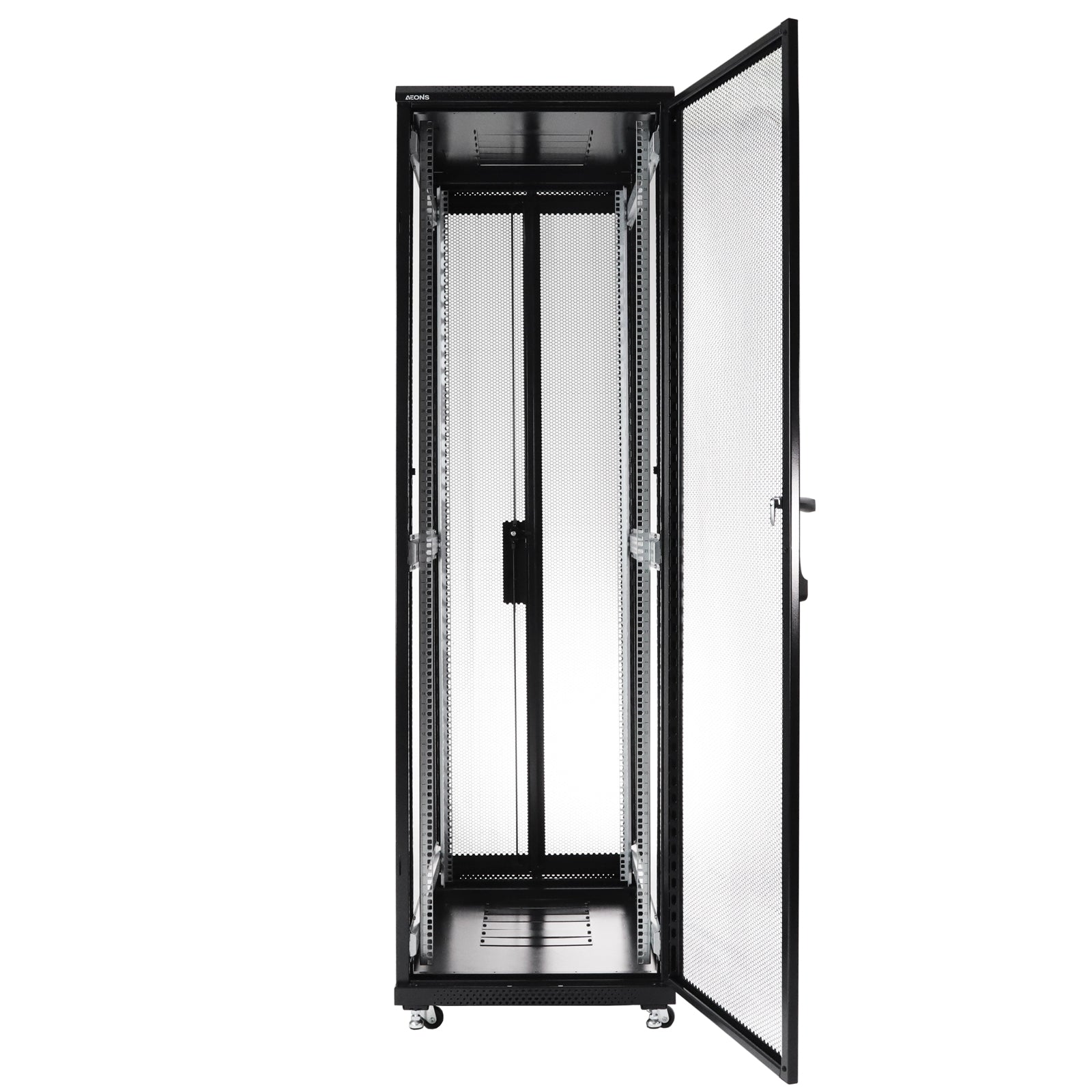

Locking, removable and reversible front and split rear doors
Roof and bottom panels have removable cable access slots w/ covers; Modular cooling fan units
Pre-installed casters and internal access leveling feet.
Specs:
| Type: |
Enclosure |
| Style: |
Floor-Standing |
| Rack Height: |
42U |
| Rack Depth (in. / mm): |
39.4 / 1000 |
| Maximum Device Depth (in. / mm): |
35.4 / 900 |
| Front Door Type: |
Perforated |
| Load capacity - Stationary (lbs / kg): |
2,200 / 1,000 |
| Number of vertical mounting rails: |
4 |
| Number of L brackets: |
N/A |
| Shelves: |
N/A |
| Cable access: |
Top, Bottom |
| Unit Dimensions (H x W x D / in.): |
81 x 23.6 x 39.5 |
Due to the dimensions of the box, Dimensional Weight Rates will apply for this item. What is Dimensional Weight?
** Free freight does NOT apply to this item. **
