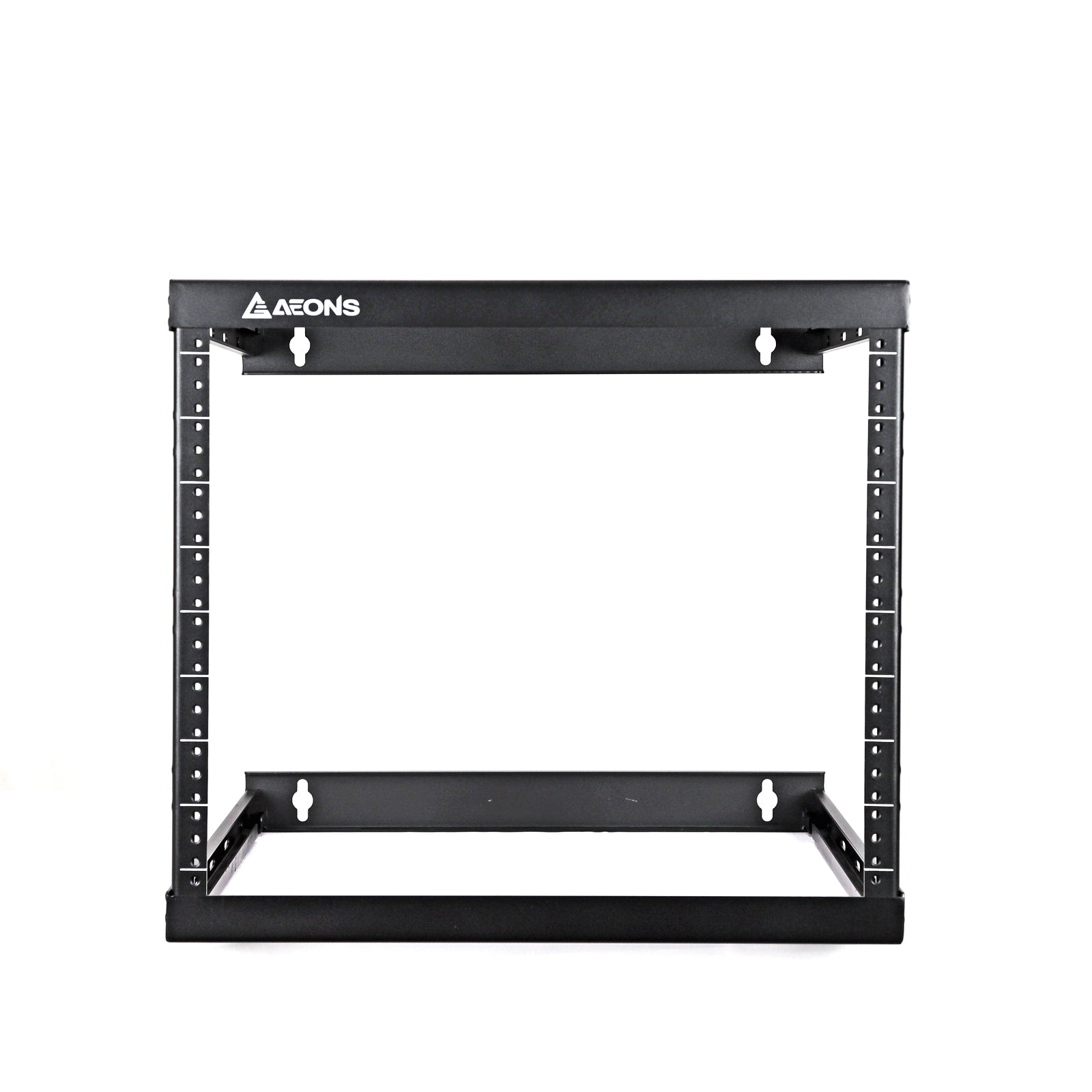

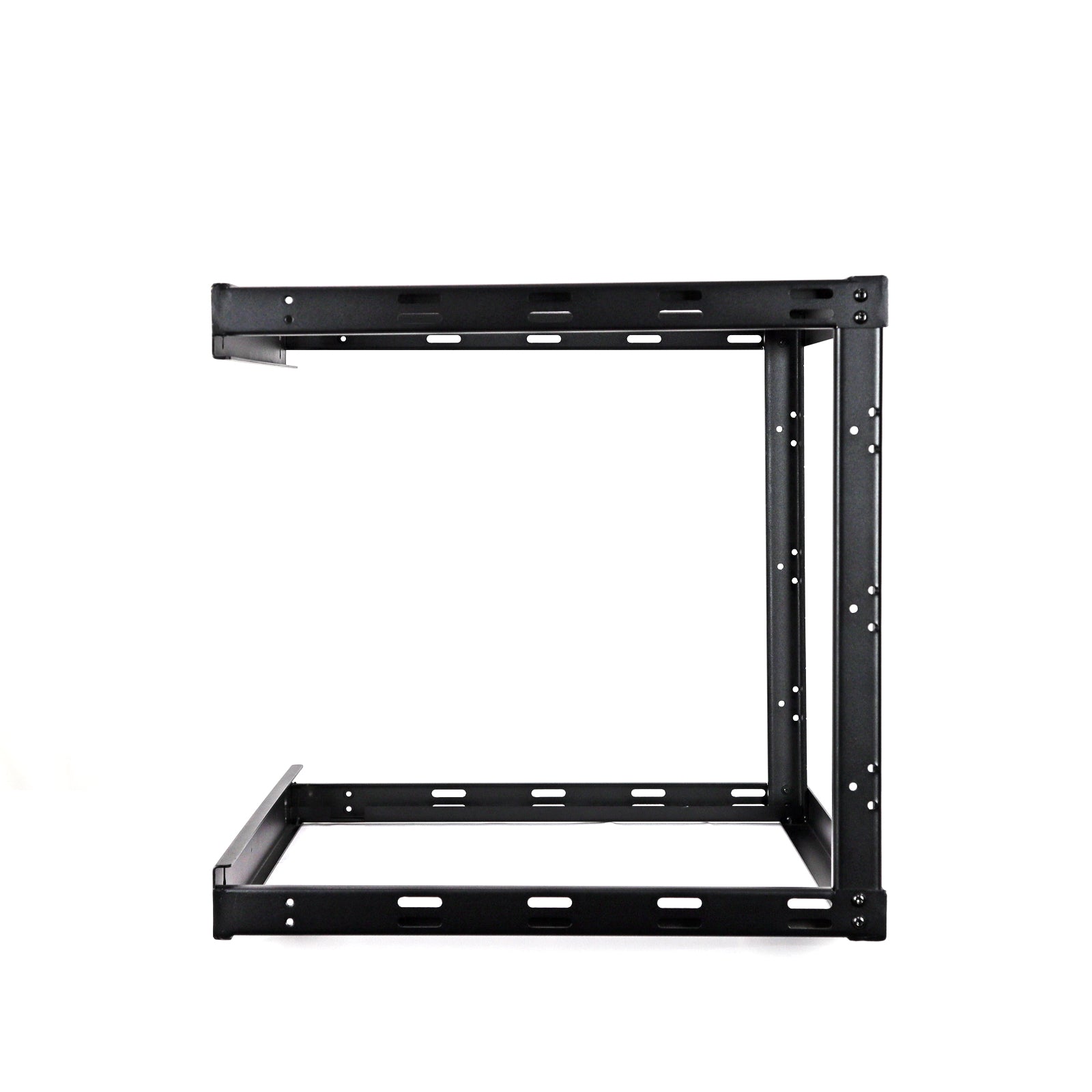

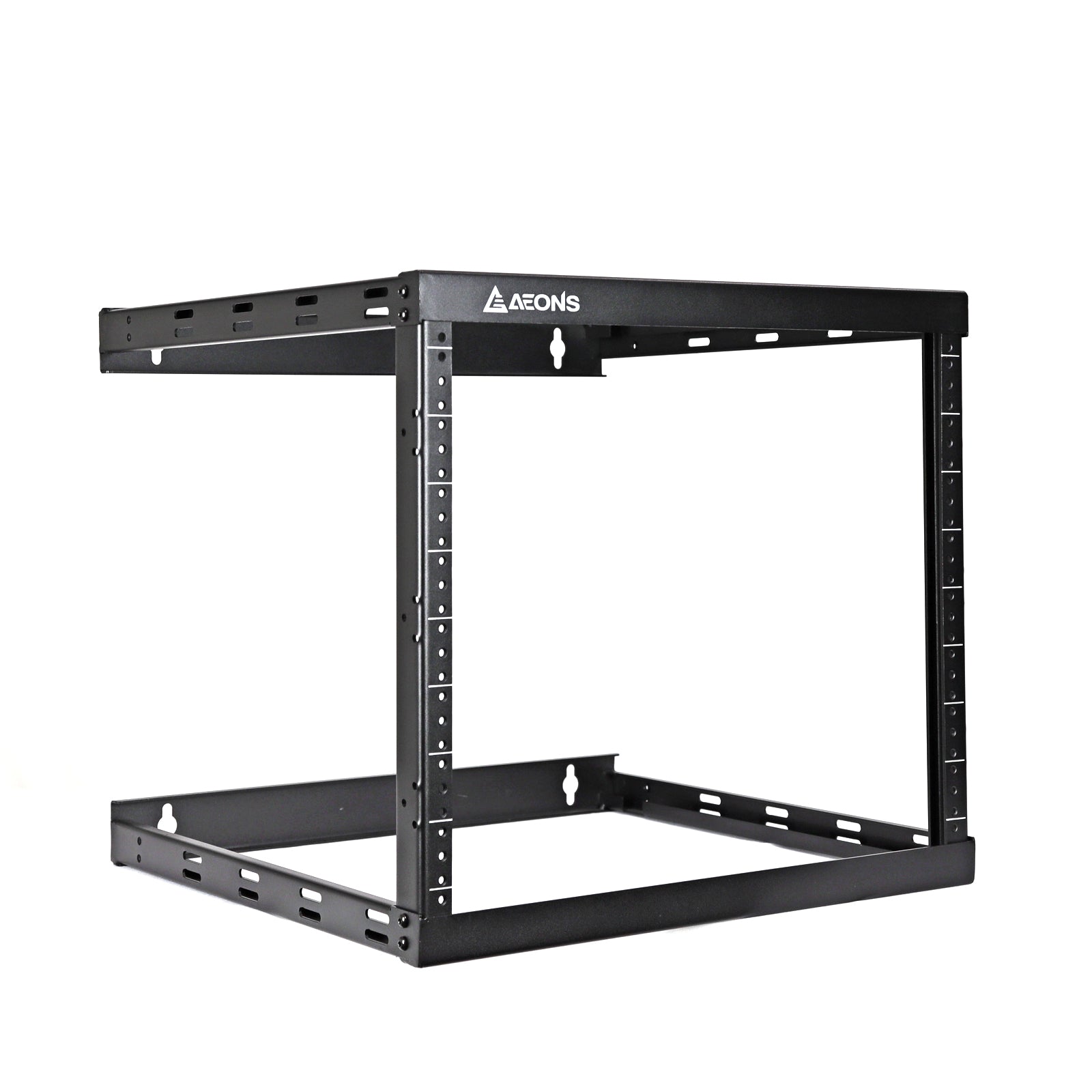

SRW Series Wall Mount Open Frame organizes EIA-standard 19-inch rack equipment in network room, offices, classrooms and other locations with limited floor space. The open solid frames with industry standards offer versatile solutions and enables unobstructed maximum airflow from the front to the back-end of equipment that reduces hot spots, resulting in a more efficient
operation and a longer lifespan. The open design also allows easy access to the front and rear of equipment, from any angle, for cable management and servicing.
Features:
Fits rack equipment up to 18 inch deep.
Maximum load capacity of 150 lbs.
Rugged high-quality 1.5mm cold rolled steel construction.
Pre-tapped 12-24 threaded holes for any network application
Fits all standard 19" rack mount IT or A/V gears in one rack
Ships flat-packed with hardware package. Easy assembly required.
Specs:
| Type: |
Open-Frames |
| Style: |
Wall-Mount |
| Rack Height: |
8U |
| Rack Depth (in. / mm): |
18 / 457 |
| Maximum Device Depth (in. / mm): |
18 / 457 |
| Number of vertical mounting rails: |
2 |
| Number of L brackets: |
N/A |
| Unit Dimensions (H x W x D / in.): |
18 x 20x 18 |
