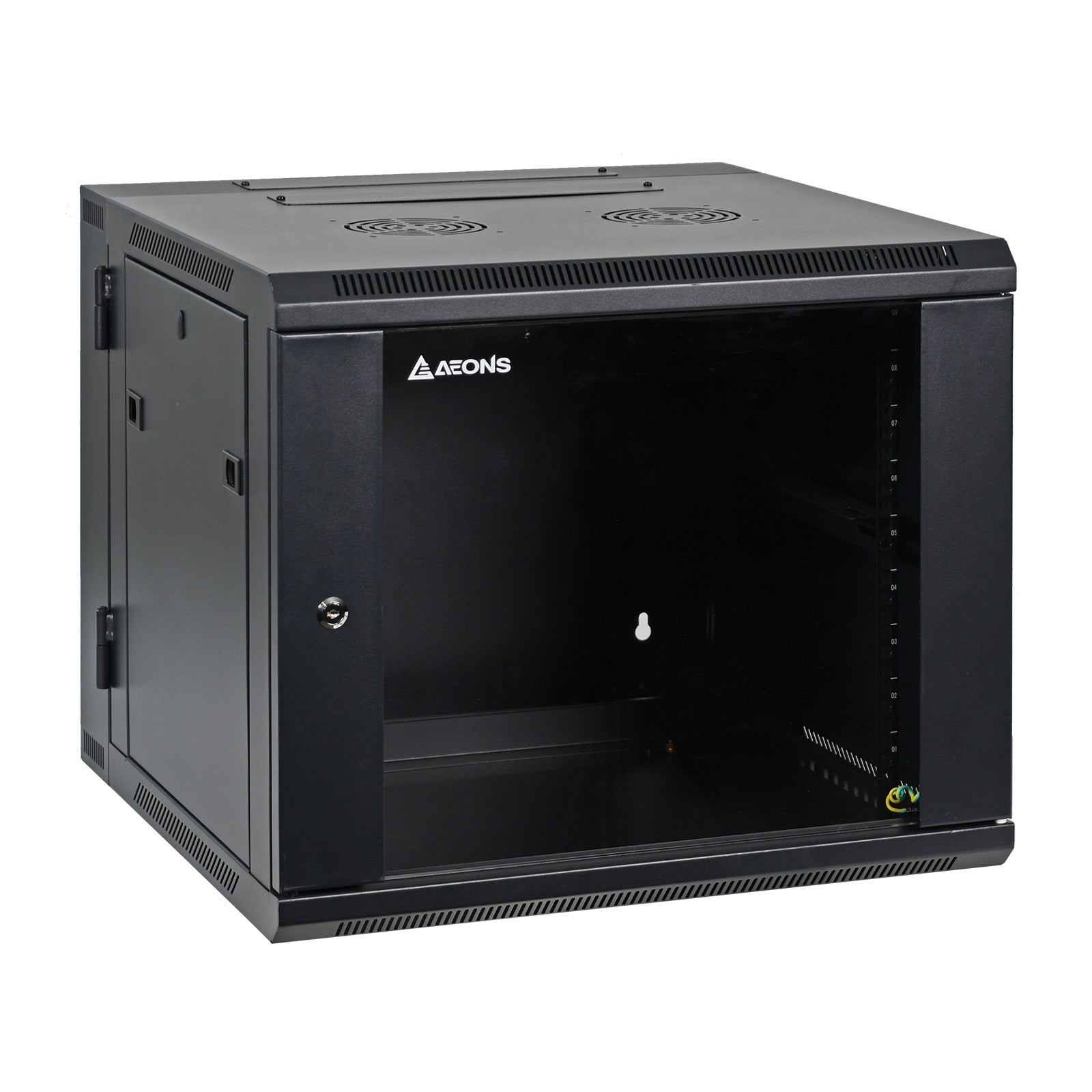

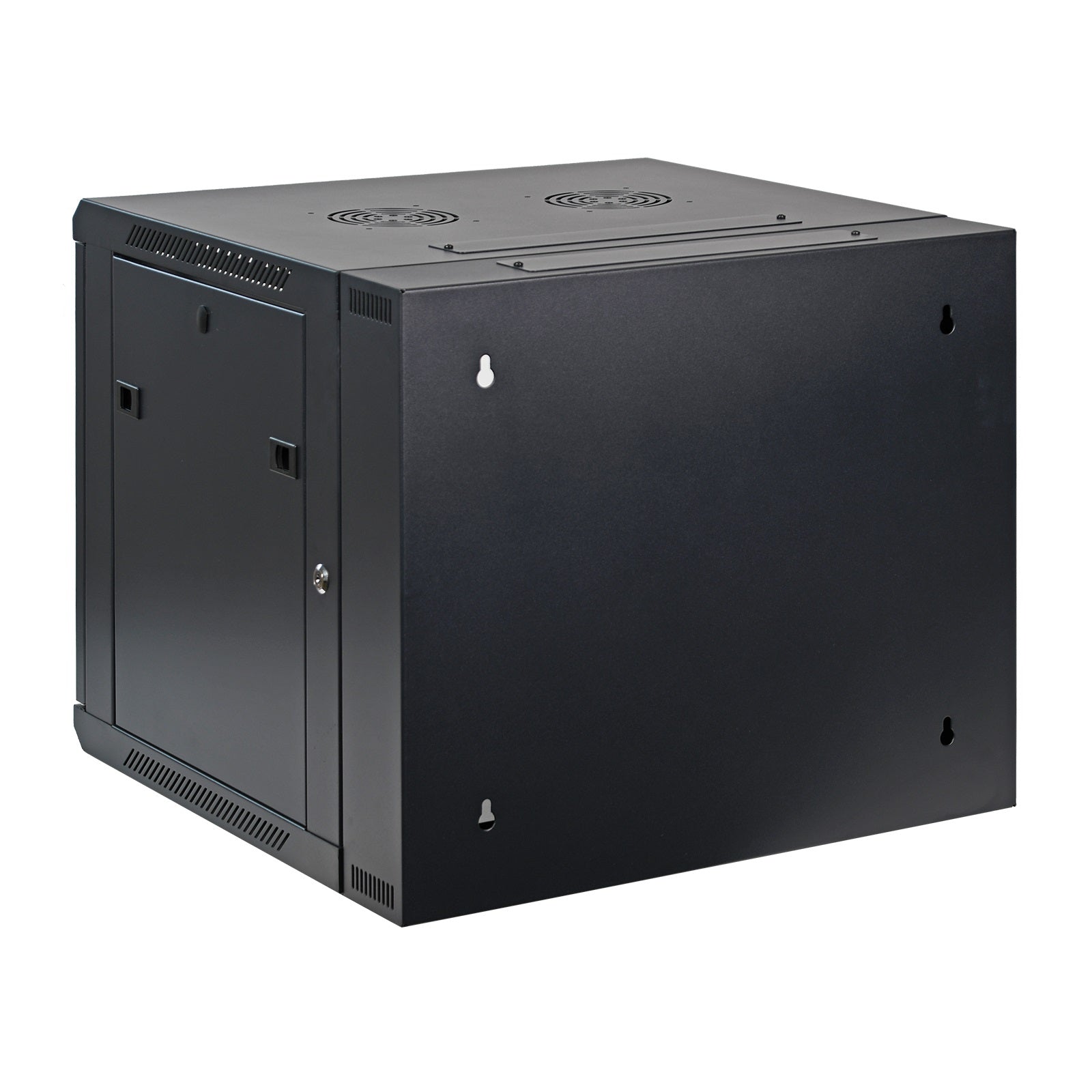

Signature SB-Series Double Section Swing-Out Wall Mount Cabinets offer a complete solution for mounting EIA-standard 19-
inch rackmount equipment in areas with restricted floor space, such as network closets, classrooms, and offices. These cabinets
hinge at the rear and can be swung away from the wall, providing easy access to equipment and cabling during installaon and
maintenance. The front and rear doors of the cabinet can be locked securely, and the vented frames and optional cooling fans
provide optimal air ventilation. Ships fully assembled for quick installation.
Features:
Fits rack equipment up to 27.7 in deep.
Maximum load capacity of 132 lbs.

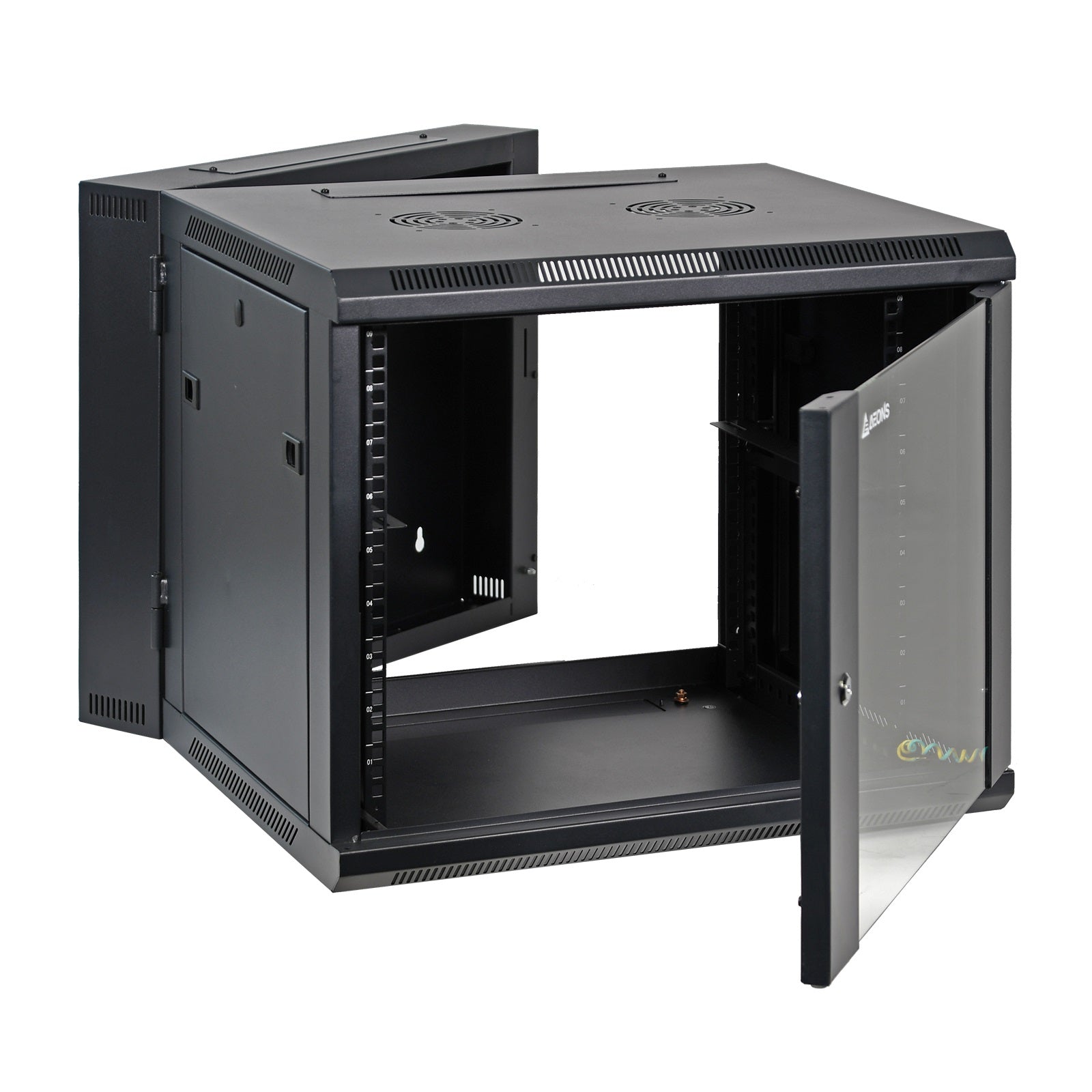

Swing away from wall on hinge for easy access to the rear of equipment.
Reinforced lockable door and main chassis for increased security.
Removable door and side panel.
Cable pass-through on top and bottom.
Rugged welded structure with ventilation at front, sides, top and bottom.
Specs:
| Type: |
Enclosure |
| Style: |
Wall-Mount |
| Rack Height: |
9U |
| Rack Depth (in. / mm): |
23.6 / 600 |
| Maximum Device Depth (in. / mm): |
21.7 / 550 |
| Front Door Type: |
Tempered Glass |
| Load capacity (lbs / kg): |
132 / 60 |
| Number of vertical mounting rails: |
4 |
| Number of L brackets: |
2 |
| Shelves: |
No |
| Cable access: |
Top, Bottom, |
| Unit Dimensions (H x W x D / in.): |
23.5 x 23.5 x 20 |
