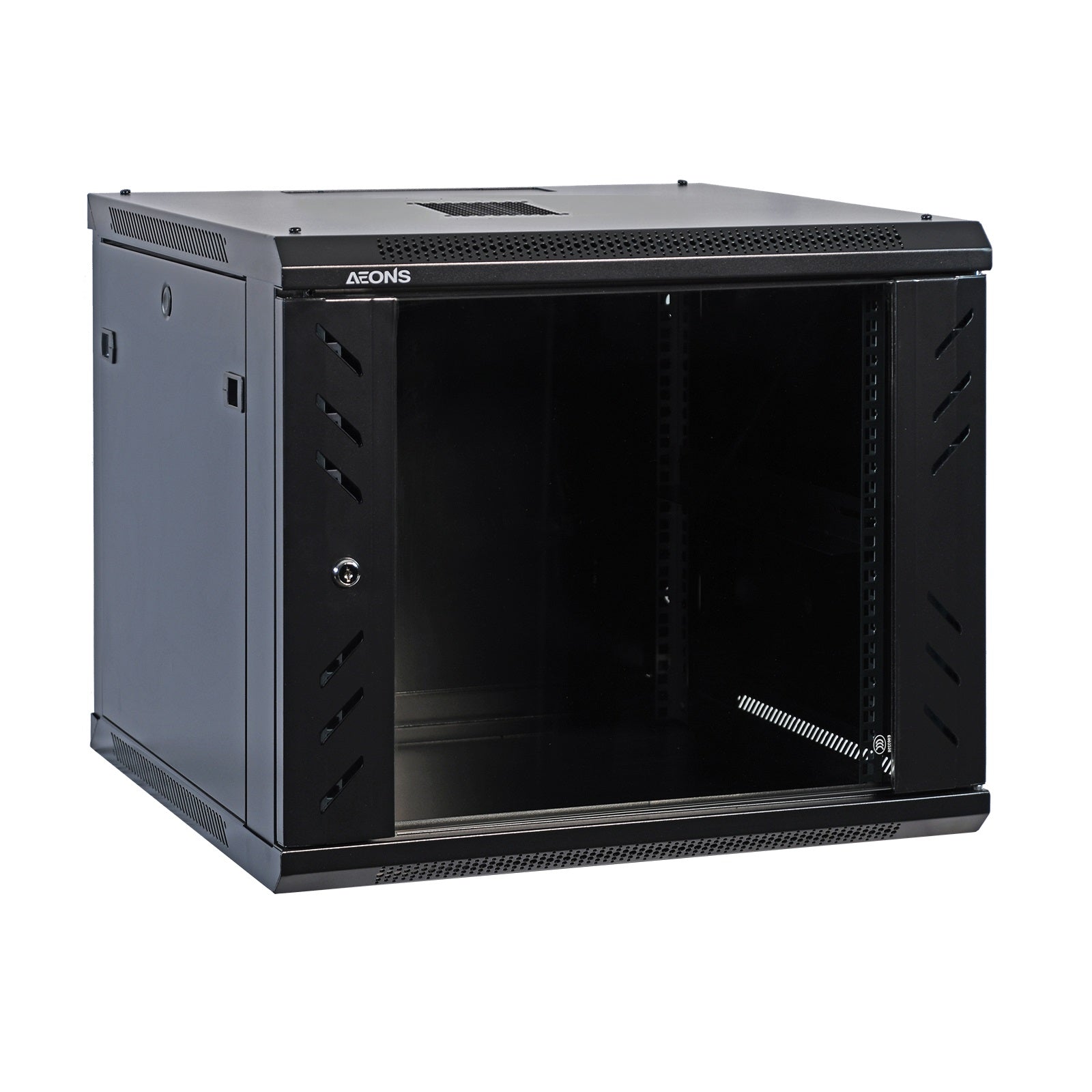

Pro-Series Wall Mount Cabinets organize and secure EIA-standard 19-inch rackmount equipment in network closets, offices,
classrooms, and other locations with limited floor space. Flat-packed for easy installation and quick deployment. Removable and

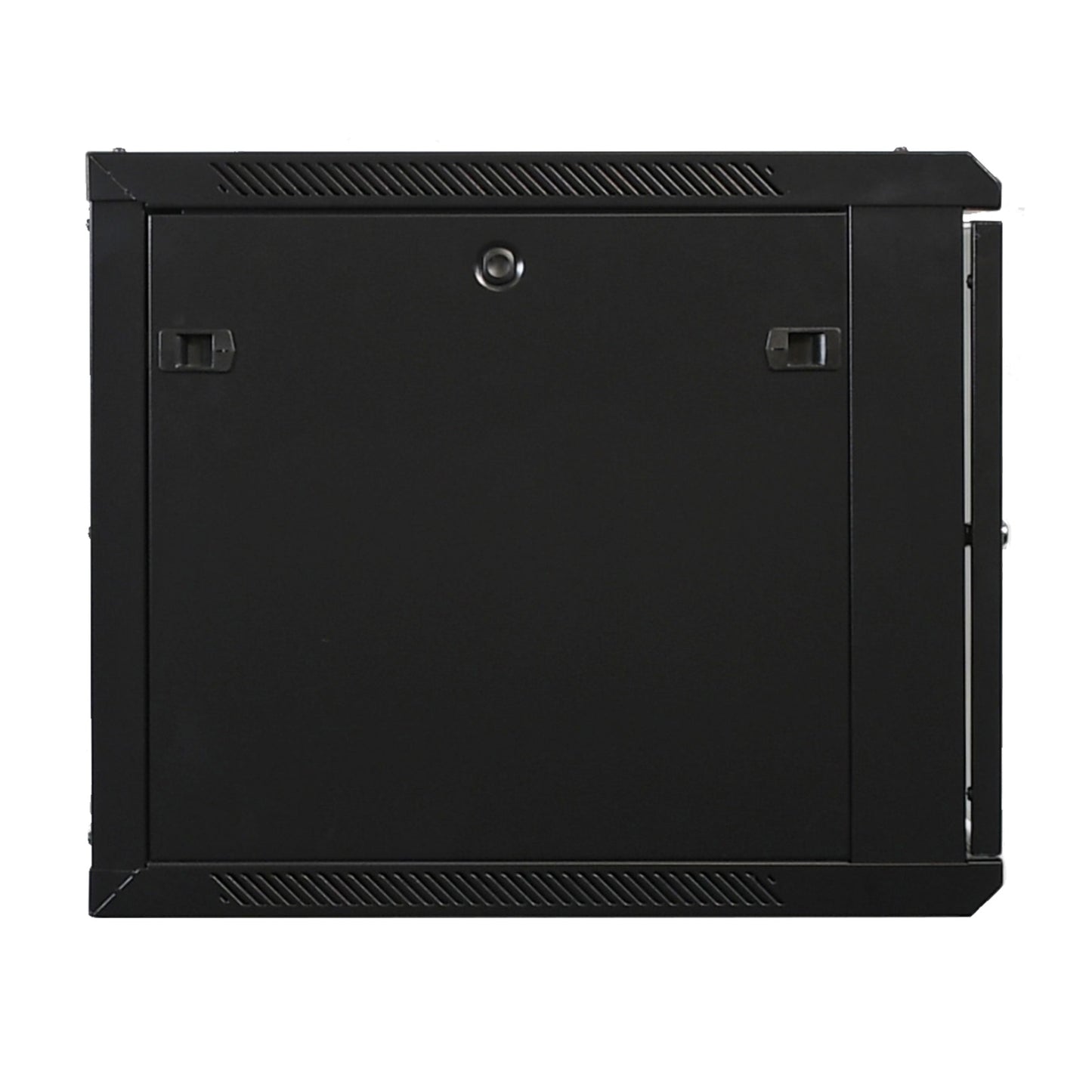

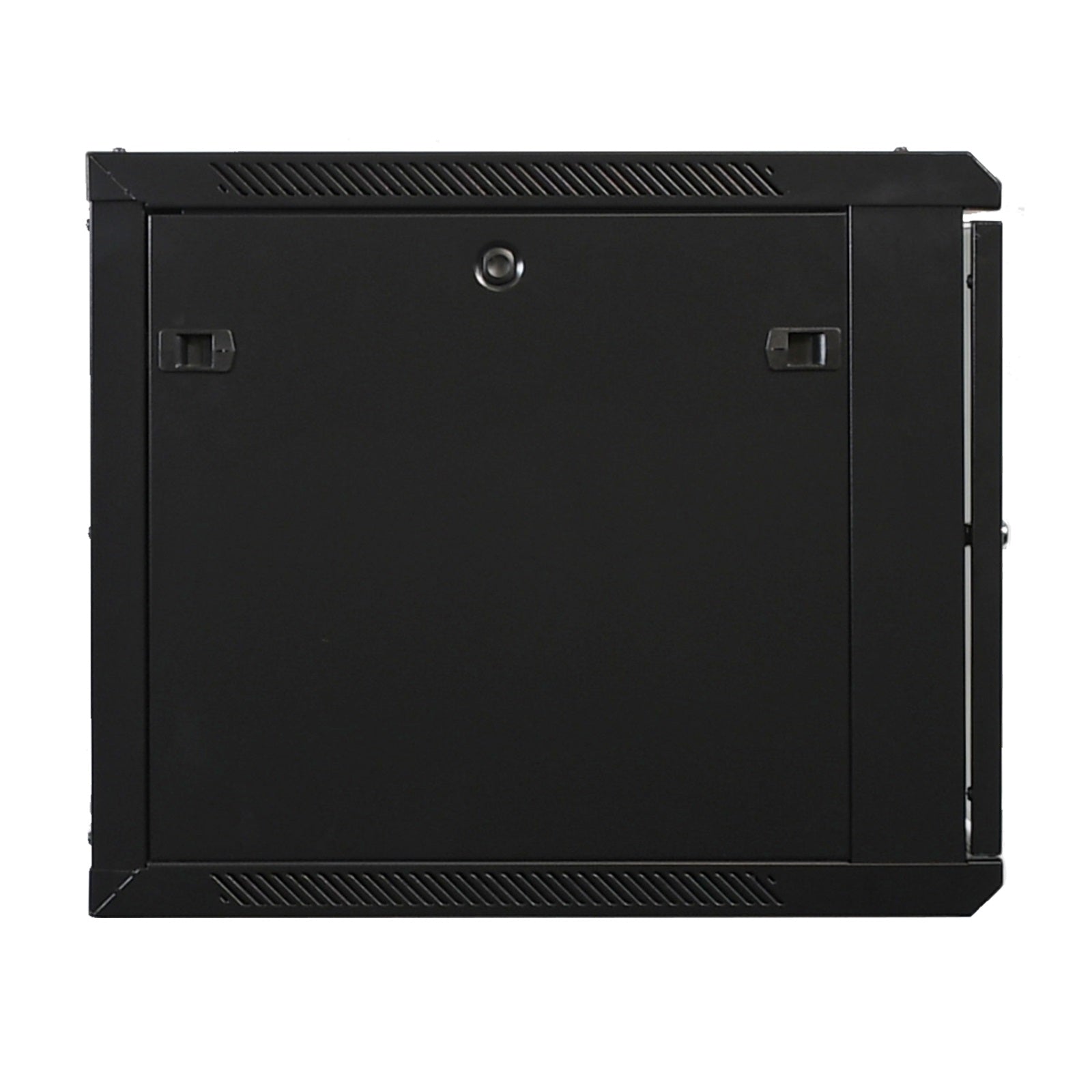

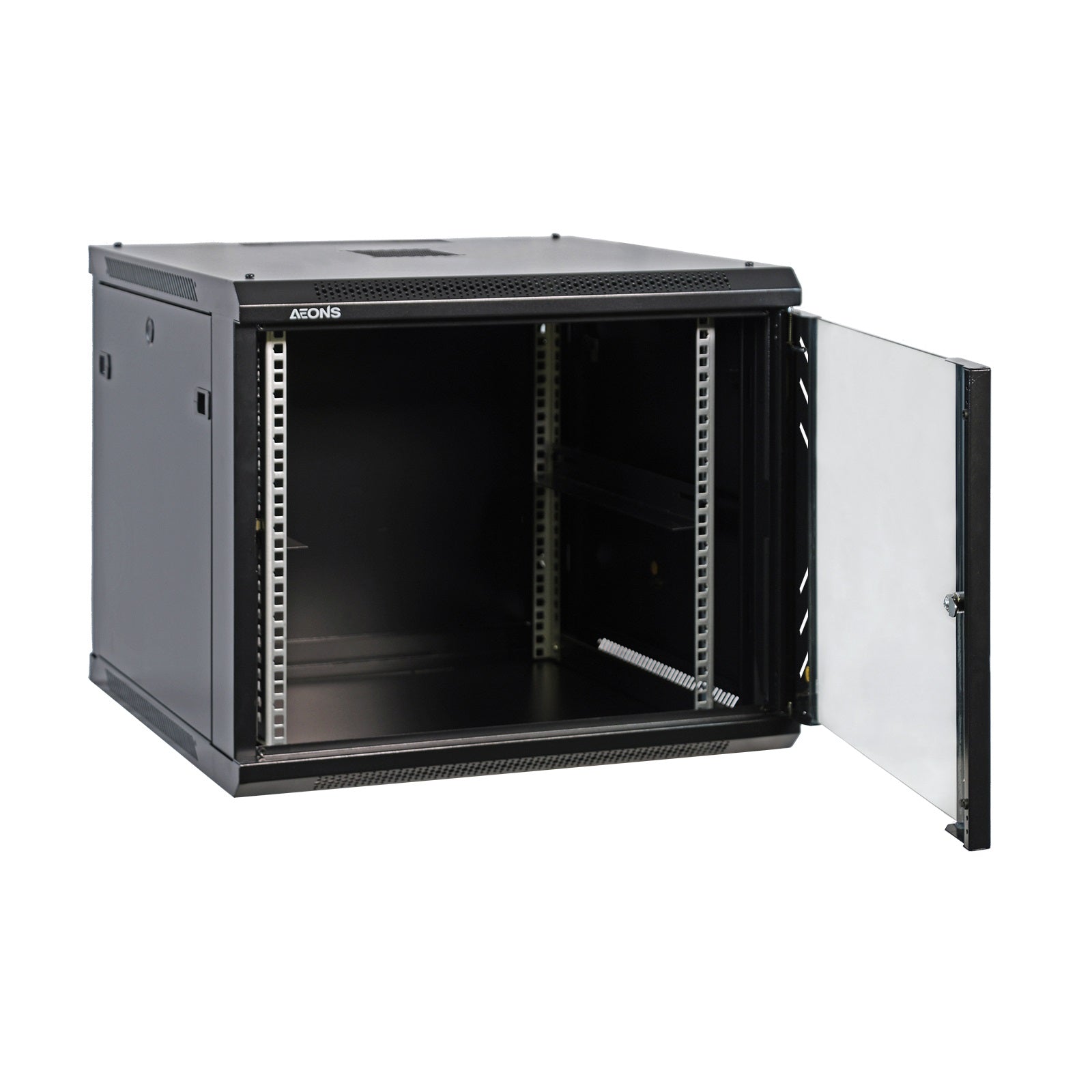

reversible front door and removable side panel design, each with quick-release mechanism, allow easy access to equipment during
installation and maintenance. The vented frames and optional cooling fans provide excellent air ventilation.
Features:
Fits rack equipment up to 21.4 inch deep.
Maximum load capacity of 132 lbs.
Reinforced lockable door.
Removable door and side panel.
Cable pass-through on top and bottom.
Rugged welding frame structure with ventilation at front, sides, top and bottom
Ships flat-packed with hardware package. Easy assembly required.
Specs:
| Type: |
Enclosure |
| Style: |
Wall-Mount |
| Rack Height: |
9U |
| Rack Depth (in. / mm): |
23.2 / 590 |
| Maximum Device Depth (in. / mm): |
21.4 / 543 |
| Front Door Type: |
Tempered Glass |
| Load capacity (lbs / kg): |
132 / 60 |
| Number of vertical mounting rails: |
4 |
| Number of L brackets: |
2 |
| Shelves: |
No |
| Cable access: |
Top, Bottom, Rear |
| Unit Dimensions (H x W x D / in.): |
20 x 23.5 x 23.5 |
Due to the dimensions of the box, Dimensional Weight Rates will apply for this item. What is Dimensional Weight?
** Free freight does NOT apply to this item. **
