Data Sheet

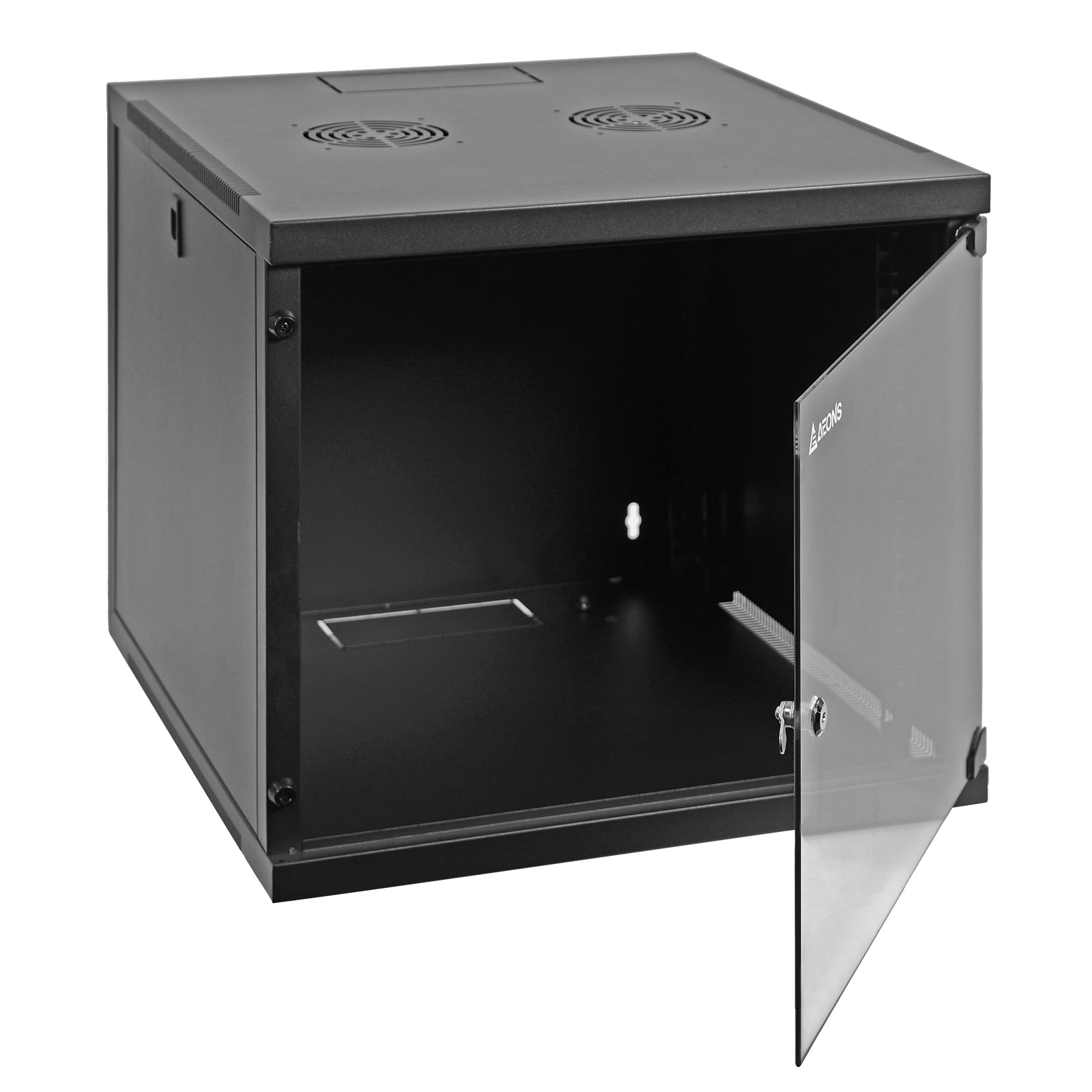

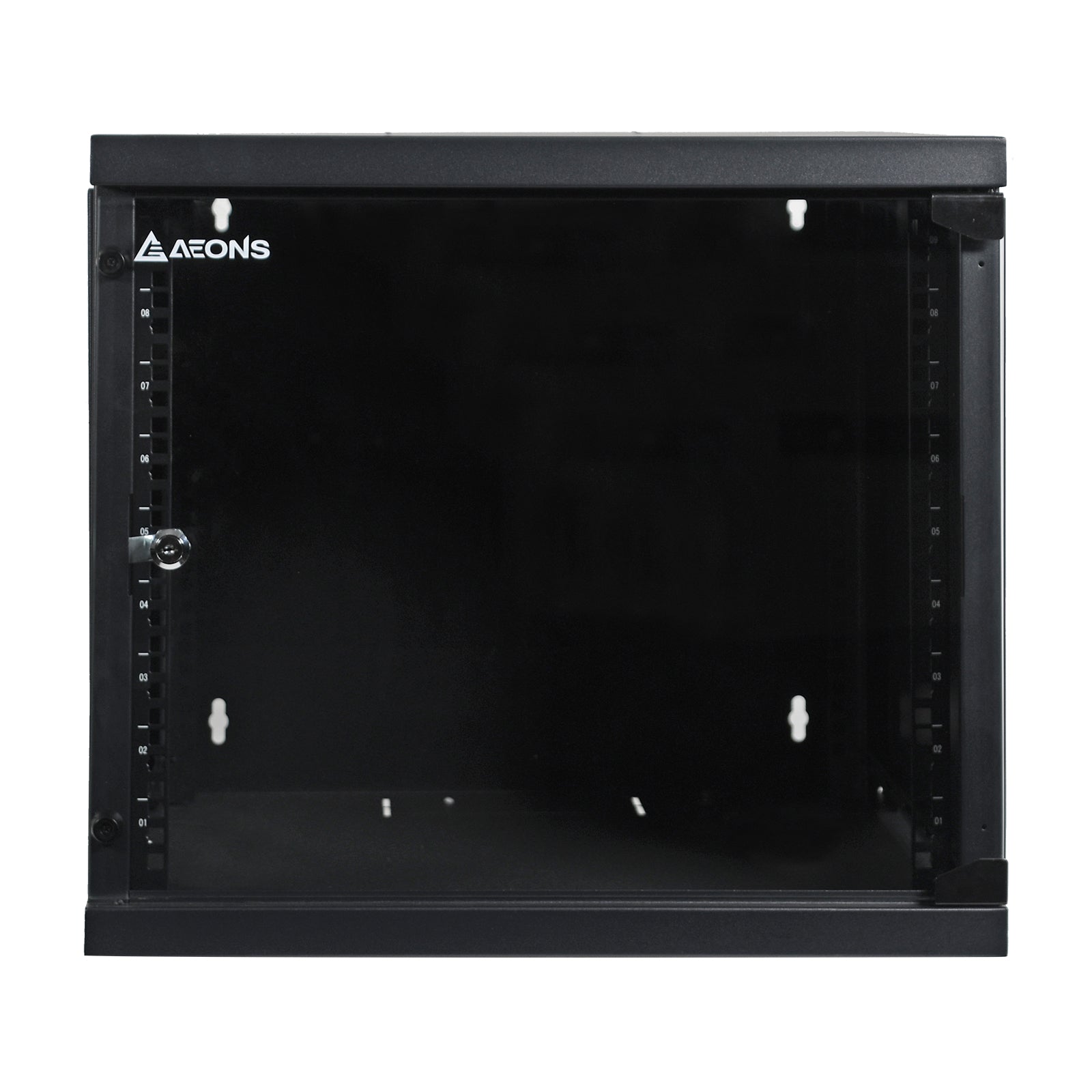

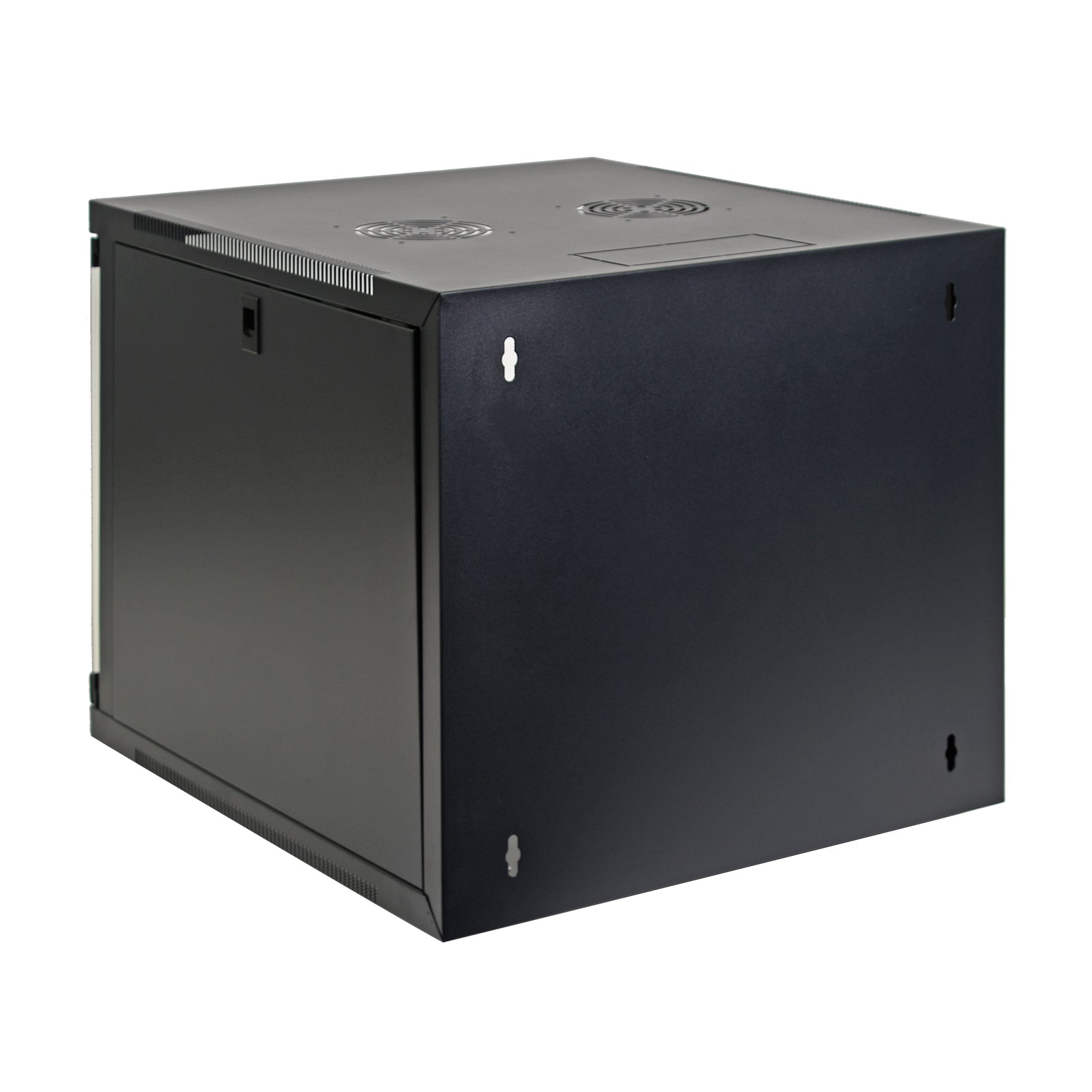

SQ Series Wall Mount Cabinets organize and secure EIA-standard 19-inch rackmount equipment in network closets, offices, classrooms, and other locations with limited floor space. Welded structure delivers exceptional strength and rigidity supporting heavier equipment. Removable side panels for installation of accessories and monitoring equipment. Frameless front door with tempered glass and turning angle over 180 degrees. .
Features:
Fits rack equipment up to 20 inch deep.
Maximum load capacity of 100 lbs.
Reinforced lockable door.
Removable door, and side panel.
Cable pass-through on top and bottom.
Rugged welding frame structure with ventilation on at front, sides, top and bottom.
Ships fully assembled
Specs:
| Type: |
Enclosure |
| Style: |
Wall-Mount |
| Rack Height: |
9U |
| Rack Depth (in. / mm): |
23.6 / 600 |
| Maximum Device Depth (in. / mm): |
20.7 / 527 |
| Front Door Type: |
Tempered Glass |
| Load capacity (lbs / kg): |
100 / 45 |
| Number of vertical mounting rails: |
4 |
| Number of L brackets: |
2 |
| Shelves: |
No |
| Cable access: |
Top, Bottom |
| Unit Dimensions (H x W x D / in.): |
20 x 21.25 x 23.6 |
Due to the dimensions of the box, Dimensional Weight Rates will apply for this item. What is Dimensional Weight?
** Free freight does NOT apply to this item. **
