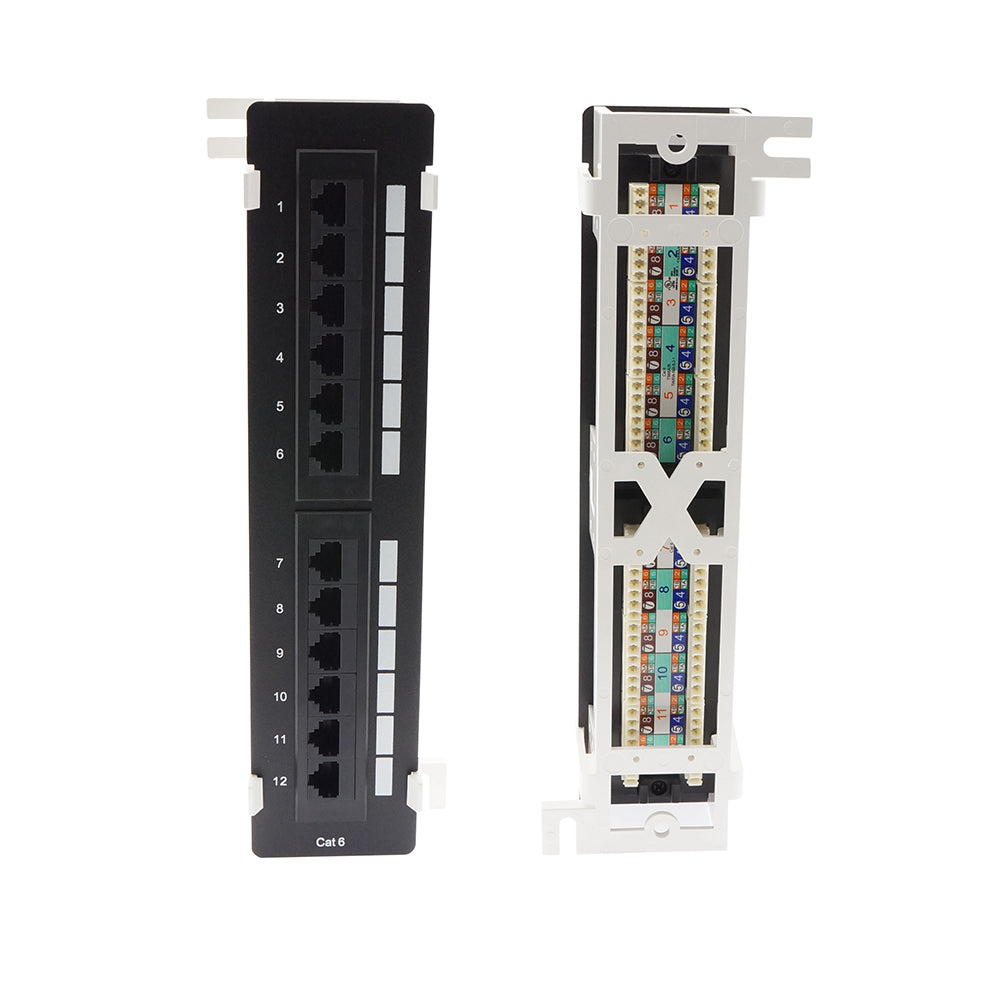

Name: Cat.6 110 Type Patch Panel 12Port Vertical w/Bracket
Brand: Bestlink Netware Inc
SKU: 102190
Price: 16.02 USD
Availability: InStock

Spec Drawing

102190

Cat.6 110 Type Patch Panel 12Port Vertical w/Bracket

Low stock

30-day money back guarantee
15% restocking fee after 30 days.
Safe SSL encrypted shopping

$16.02

Spec Drawing

UL listed

19 inch 1U rackmount

Meets TIA/EIA-568B.2/568B.2-1 Cat.6, ISO/IEC 11801 and EN 50173-1 specification

Support T568A & B wiring

Wire diameter: 22 ~ 26AWG

Insulation diameter range: 0.70 to 1.40mm

Jack contacts: Phosphor bronze, 50micron gold plate over nickel plating.

IDC contacts: Phosphor bronze, 50micron gold plate over nickel plating.

Safety: UL1863

Flammability: UL 94 VO

Operating temperature: -40 to +70 degree Celsius

Weight: 1.55LBS

Mounting Hinge: 102215

25 years warranty
