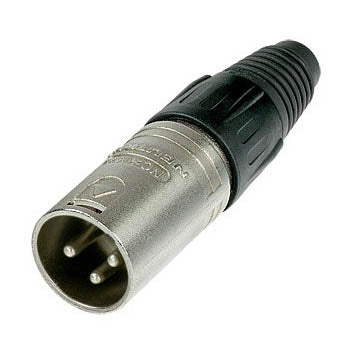

The Neutrik NC3MX

3 Pin XLR Male Jack is perfect for connecting microphones to mixers. The Nickel housing and silver contacts (must be soldered) make this XLR jack easy to assemble with only 4 parts and no screws. Neutrik has developed the "industry standard" XLR cable connector. The NC3MX has a compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables. The worldwide accepted standard. Rugged diecast shell, rear insert, robust and compact design (shortest available XLR cable connector). Time saving assembly: only 4 pieces, no set screws. Neutrik unique chuck-type strain relief. UL recognized component.

Features & Benefits

* Rugged zinc diecast shell, long lasting and durable * Chuck type strain relief system for secure clamping of cables * Boot with rubber gland gives high protection against bending stresses * Coloured rings and boots available for coding and marking * UL recognized components

Product

* Title: NC3MX * Connection Type: XLR * Gender: male * Electrical * Capacitance between contacts: = 4 pF * Contact resistance: = 3 mO (inner) * Dielectric strength: 1,5 kVdc * Insulation resistance: > 10 GO (initial) * Rated current per contact: 16 A * Rated voltage: < 50 V * Mechanical * Cable O.D.: 3.5 - 8.0 mm * Insertion force: = 20 N * Withdrawal force: = 20 N * Lifetime: > 1000 mating cycles * Wiresize: max. 2.5 Sq (mm) * Wiresize: max. 14 AWG * Wiring: Solder contacts * Locking device: Latch lock * Material * Boot: Polyurethan * Contacts: Brass (CuZn39Pb3) * Insert: Polyamide (PA 6.6 30 % GR) * Locking element: Zinc diecast (ZnAl4Cu1) * Shell: Zinc diecast (ZnAl4Cu1) * Shell plating: Nickel * Strain relief: Polyacetal (POM) * Environmental * Approvals: UL * Flammability: UL 94 HB * Standard compliance: IEC 61076-2-103 * Protection class: IP 40 * Solderability: Complies with IEC 68-2-20 * Temperature range: -30C to +80C
