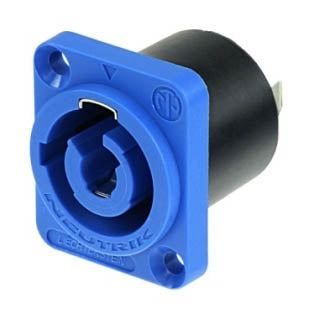

Neutrik NAC3MPA-1
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Features & Benefits
* Locking 20 A / 250 V ac appliance coupler
3 contacts for line, neutral and premating safety ground
* Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
* Fast and easy twist lock latching system
* Extremely robust and reliable
* Ergonomic design
* User friendly latch design for easy handling
* UL, cUL recognized components
* VDE certified
* SEV approved
* Branded with unique hologram - guarantees genuine and authentic Neutrik product
*Wire : 14 AWG
* Gender : Male
