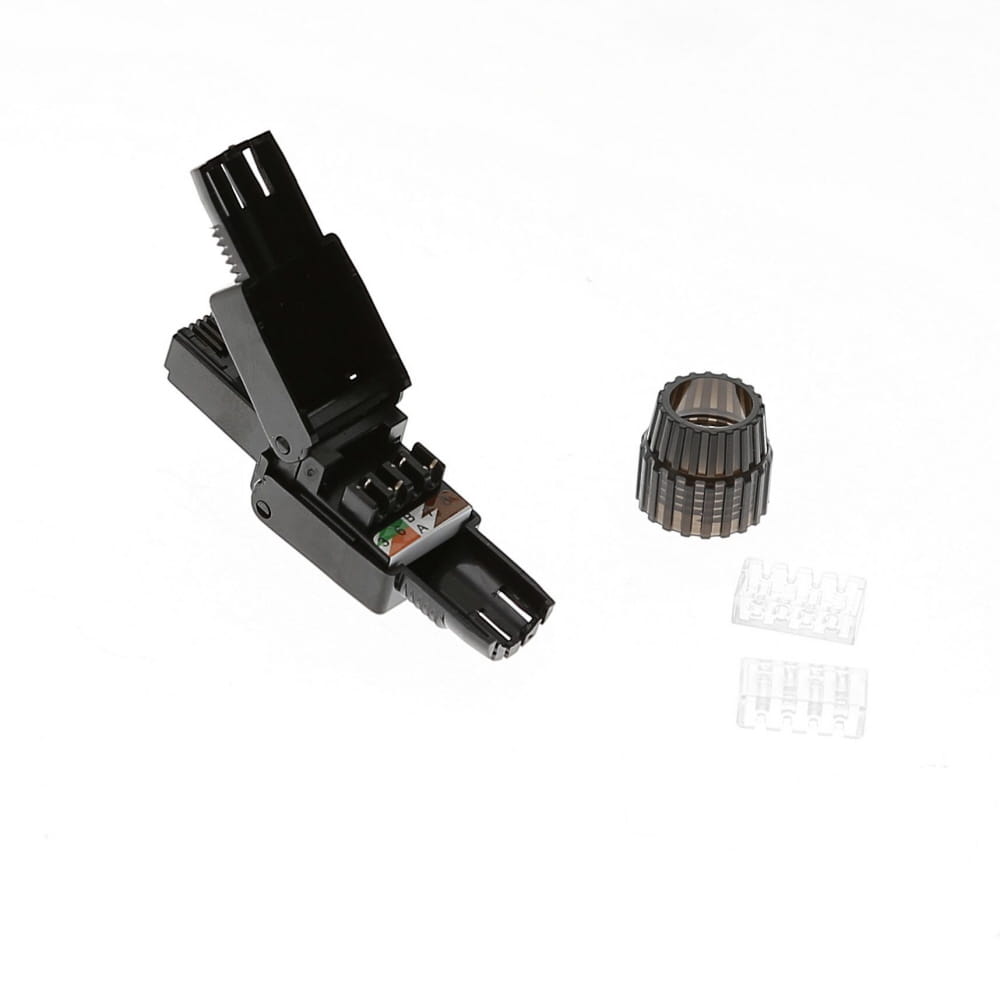

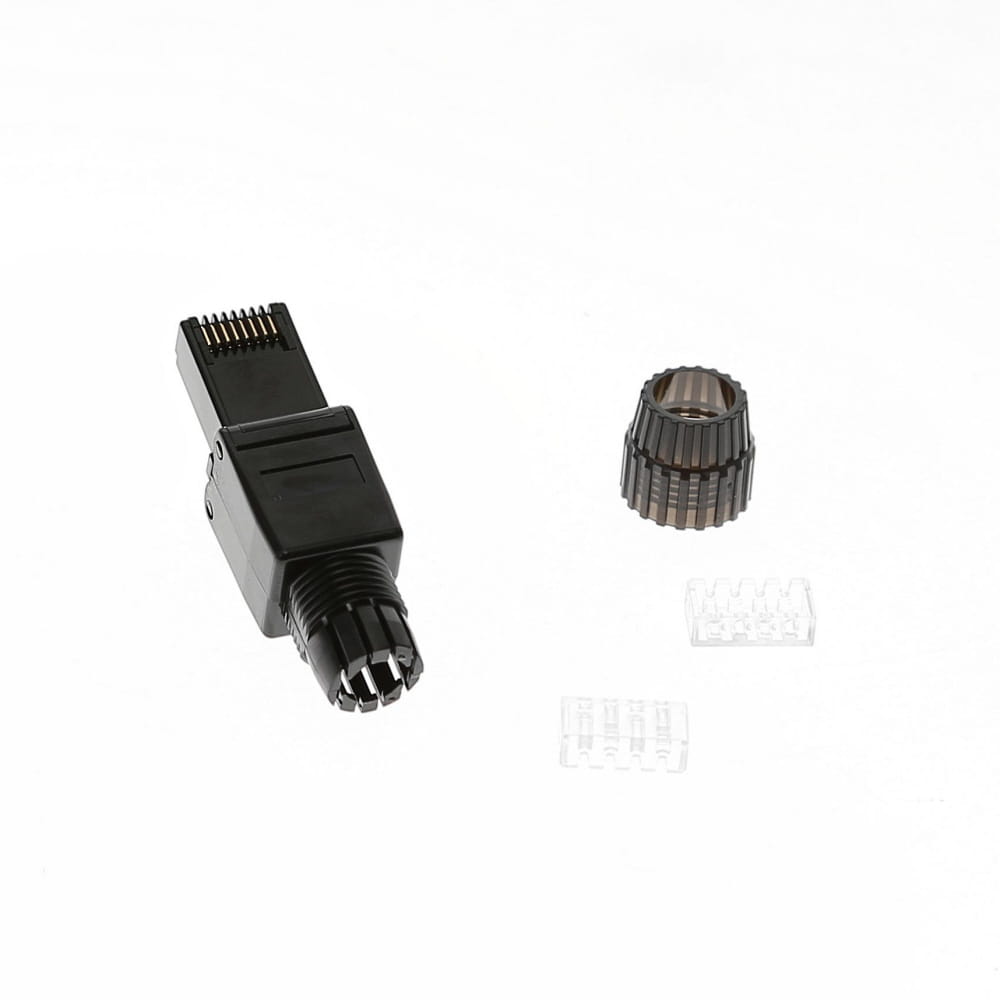

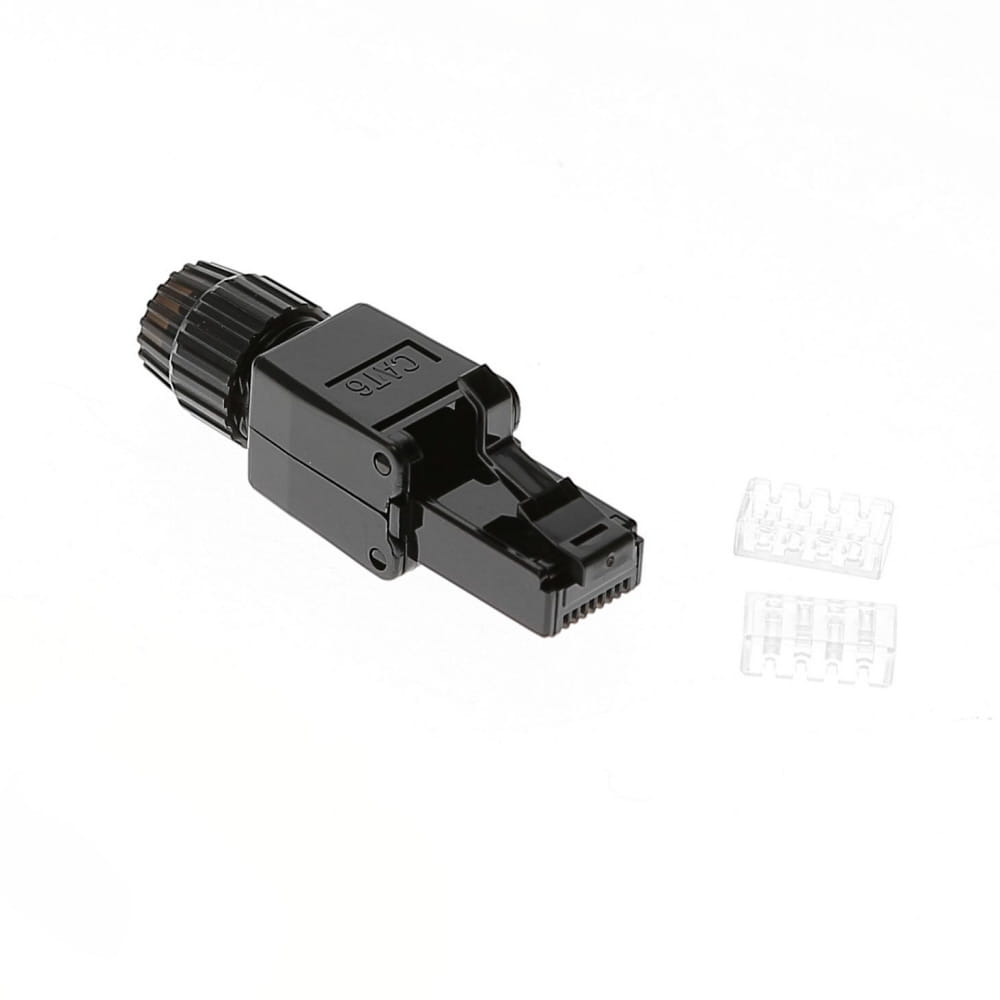

Cat.6 RJ45 TOOL-LESS plug is 8-position 8-conductor (8P8C) and designed for computer networking. The unique tool-less design does not require the use of a crimping tool. Simply insert the leads following the color coding, and press down the lid. 568A and 568B color wiring diagram is integrated on the lid for easy installation.
CAT 6 rated connector provide excellent performance for data networks
PCB technology provides maximum performance and superior signal quality
Includes an integrated TIA-568A/B color wiring diagram
Backwards compatible to all lower rated category components
Compatible with BestLink wall plates, surface mount boxes, and blank panels
Applicable wire gage: 23 to 26AWG
IDC (Insulation Displacement Connector)
No need to strip the wire before connecting
UL listed
