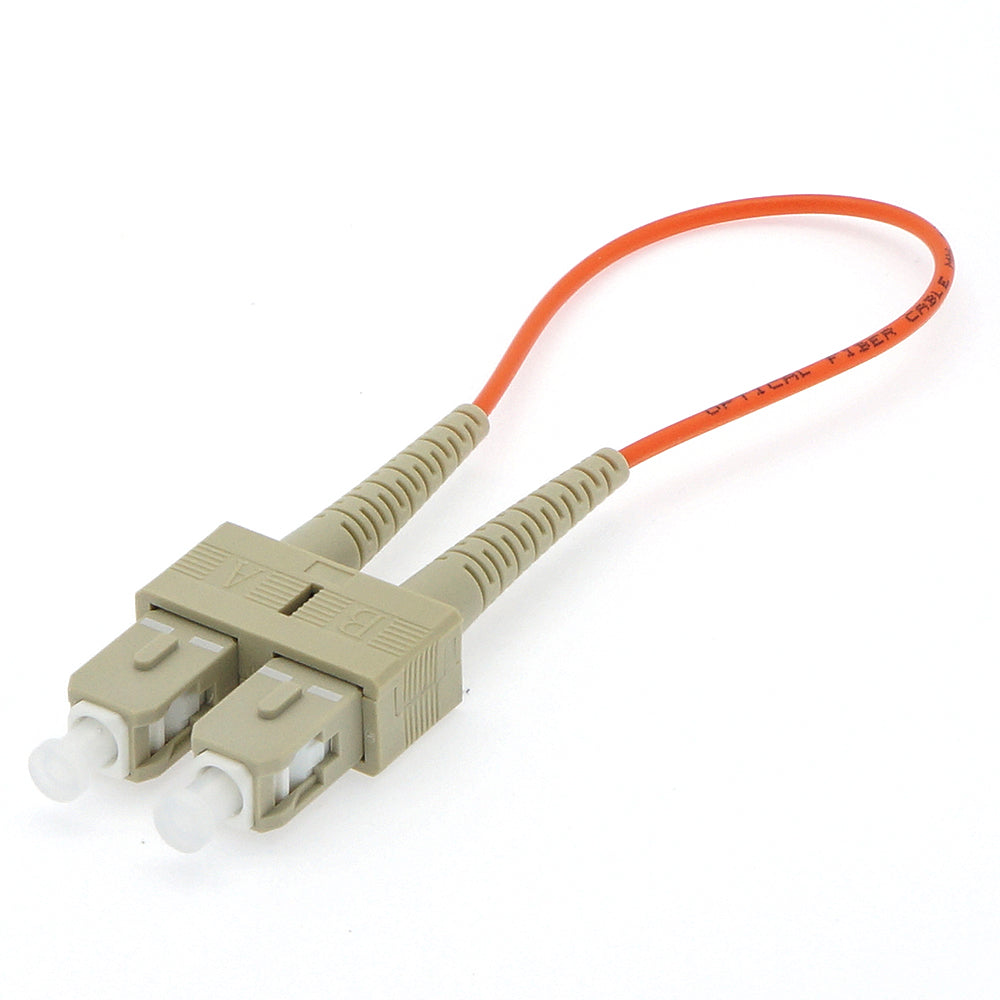

Fiber Optic Loopback is designed to provide a media of return patch for a fiber optic signal; typically it is used for fiber testing applications or network restorations. For the testing applications, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem. Similar as patch cables, fiber optic loopback can be with various jacket types and cable diameters.

Applications:

Cable TV, LAN, Telecom network, test equipment

Features:

* Various connector types available * Low insertion loss and back reflection loss

Connector Type		LC
Polishing		UPC
Return Loss		55 dB
Insertion Loss		0.30 dB
Ferrule Material		Ceramic (zirconia)
Ferrule Diameter		1.25 mm / 2.5 mm
Durability		500 Cycles
Operation Temperature Range		-20’C +70’C
