502688BK

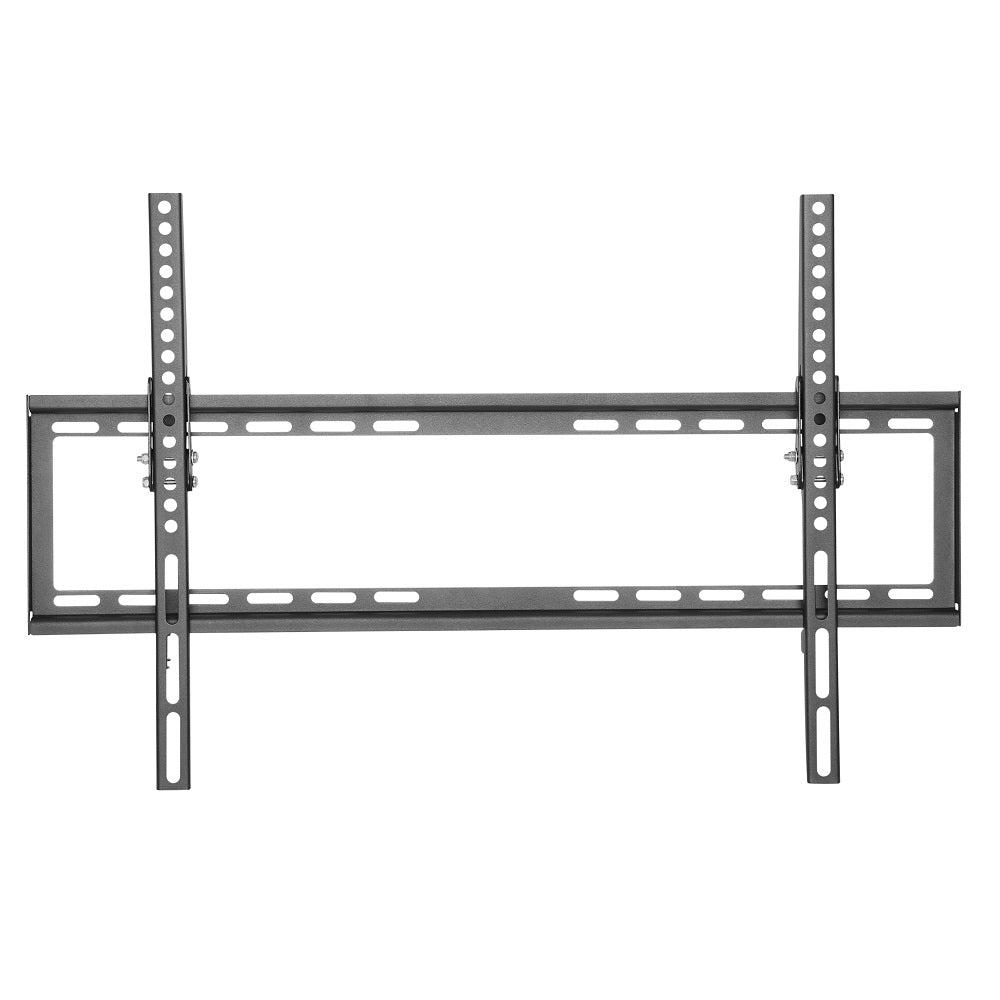

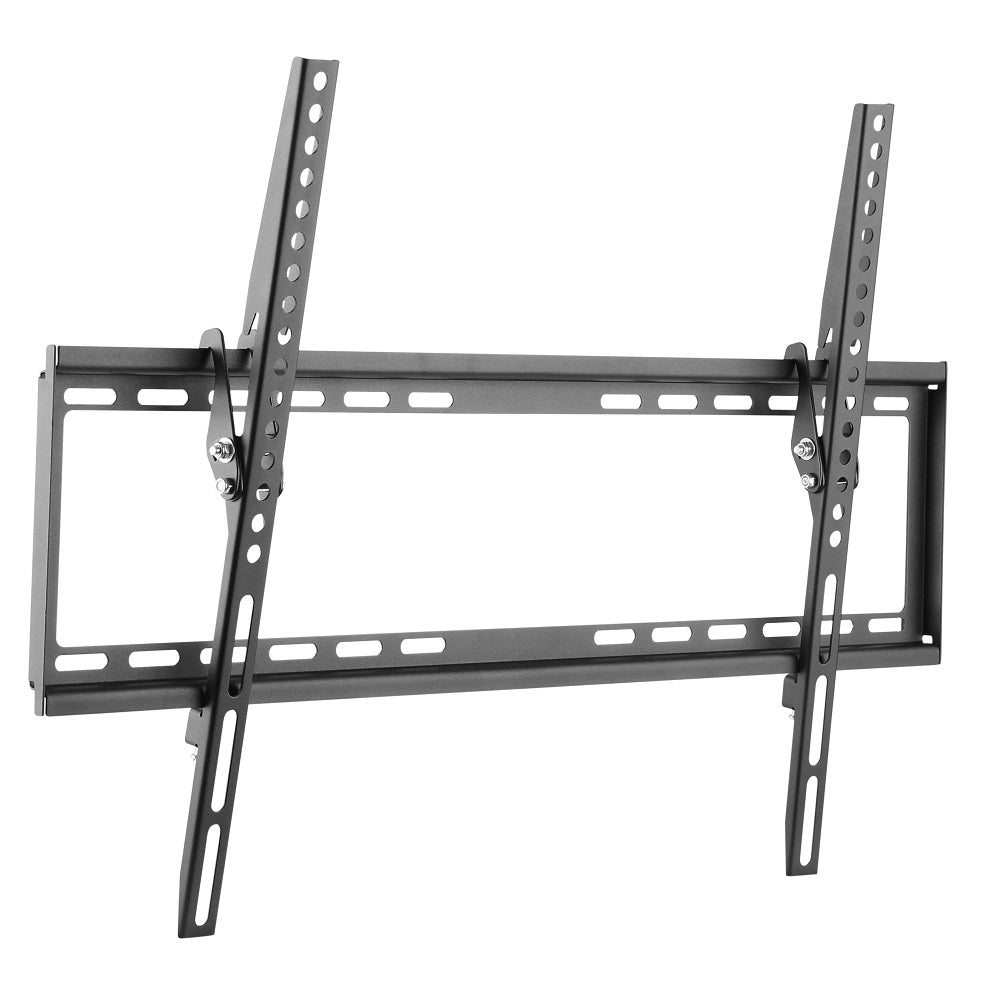

TV Mount for 37~70" Tilt, Max 600x400 VESA, KL22G-64T
In stock
- 30-day money back guarantee
- 15% restocking fee after 30 days.
- Safe SSL encrypted shopping
Regular price
$10.68
Sale price
$10.68
Regular price
Unit price
per
Spec Drawing Assembly Guide Large Image Packaging
** Free freight does NOT apply to this item. **
Features:
Sturdy steel construction provides solid and long-lasting performance. High quality power-coated finish provides a stylish anti-scratch surface. Open architecture allows for increased ventilation and easier access to wires. Security screws provide added safety for TV.
| Material | Steel | ||
| Color | Fine Texture Black | ||
| Surface Finish | Powder Coating | ||
| Metal Sheet Thickness | Wall Plate THK: 0.047" (1.2mm) Cold-Rolled Sheet Bracket Arm THK: 0.047" (1.2mm) Cold-Rolled Sheet |
||
| Compatible Screen Size * | 37"~70" | ||
| Dimensions | 0.81"x26.2"x16.6" (20.5x465x422mm) | ||
| Max VESA | 600x400mm | ||
| Weight Capacity | 77Lbs (35kg) | ||
| Profile | 0.81" (20.5mm) | ||

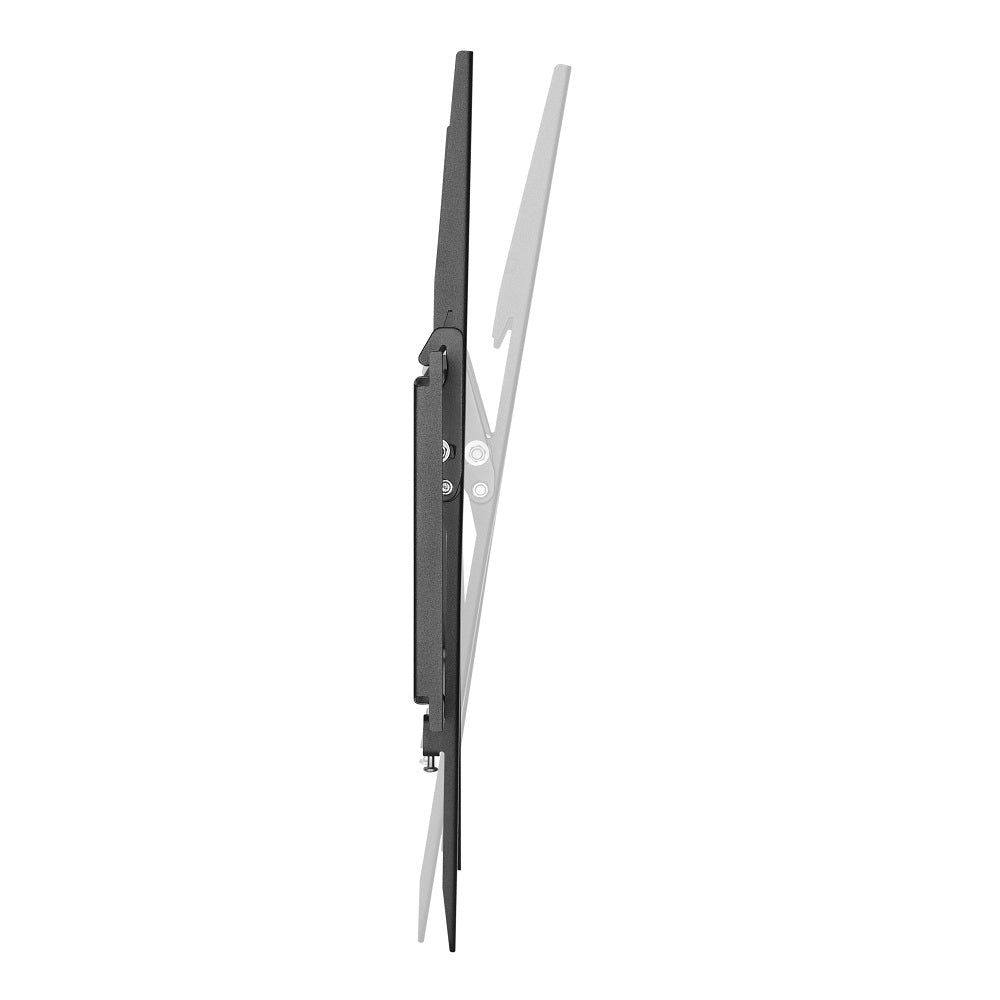

| Tilt Range | -8’~0’ | ||
| Fits Curved TV | No | ||
| Installation | Solid Wall, Double Stud (406 / 450 / 600mm) | ||
| Panel Type | Detachable Panel | ||
| Wall Plate Type | Fixed Wall Plate | ||
| Cable Management | No | ||
| Anti-Theft | No |
* Note: Supported screen size is provided as a reference only. Please check the bracket dimensions above and make sure the overall bracket size does not exceed your TV.
